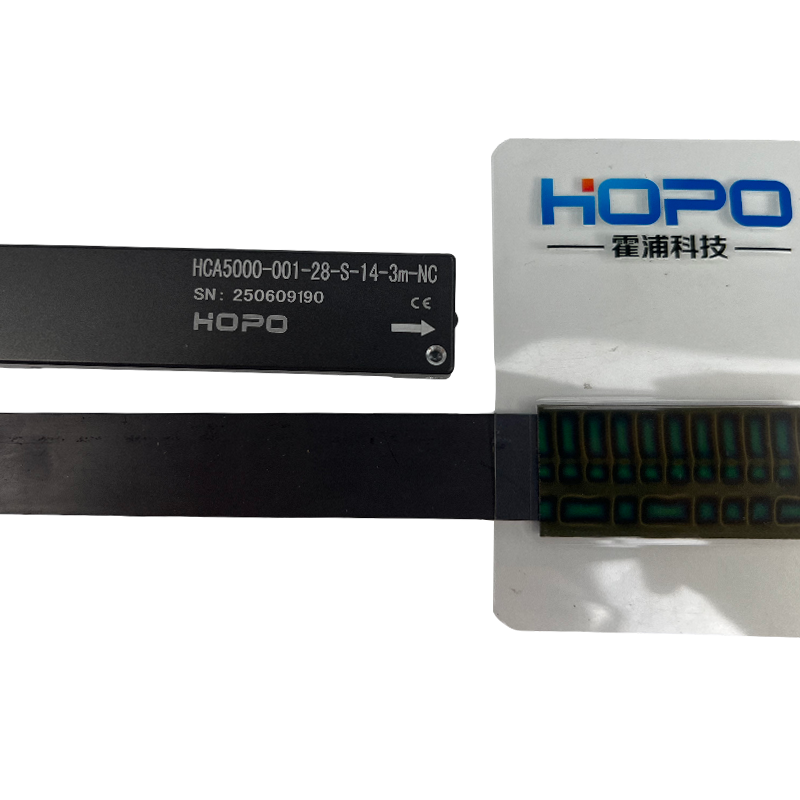

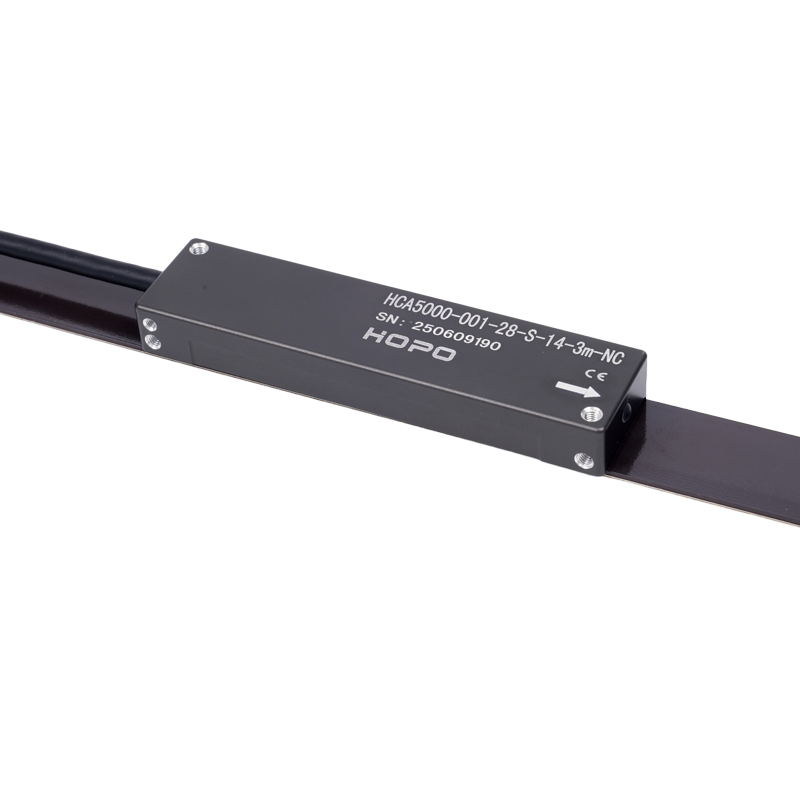

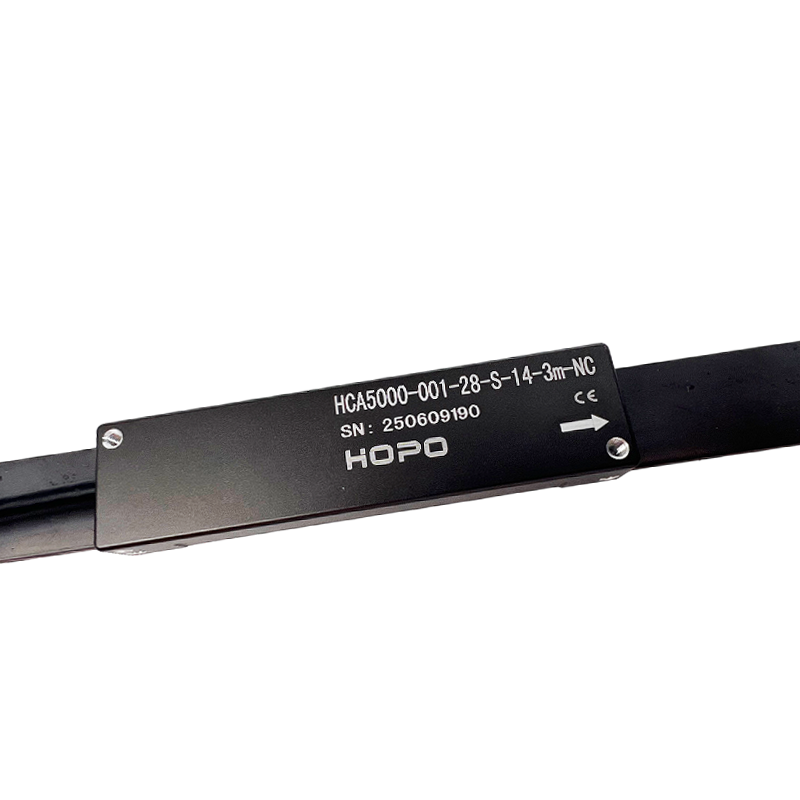

HCA5000 Absolute Magnetic Linear Encoder
The HCA5000 is a high-performance absolute magnetic linear encoder designed for applications requiring extra-large travel lengths and uncompromising precision. With true absolute position feedback, it delivers instant, reliable measurement without homing, making it ideal for highly dynamic motion control.
Key Features
True absolute system for instant position detection
High accuracy with resolution up to 1 μm
Extra-large measuring length up to 82,000 mm
Fast measuring speed up to 5 m/s
Multiple protocols: SSI, BiSS, Tamagawa, Modbus-RTU, Panasonic
Rugged IP67 design, resistant to dust and water
Ultra-flexible drag chain cable, tested to 20+ million bends
Intelligent error notification for enhanced reliability
Benefits
Long travel range without sacrificing precision
Reliable operation in demanding environments
Reduced maintenance and downtime with robust, wear-free design
Seamless integration with various industrial communication systems

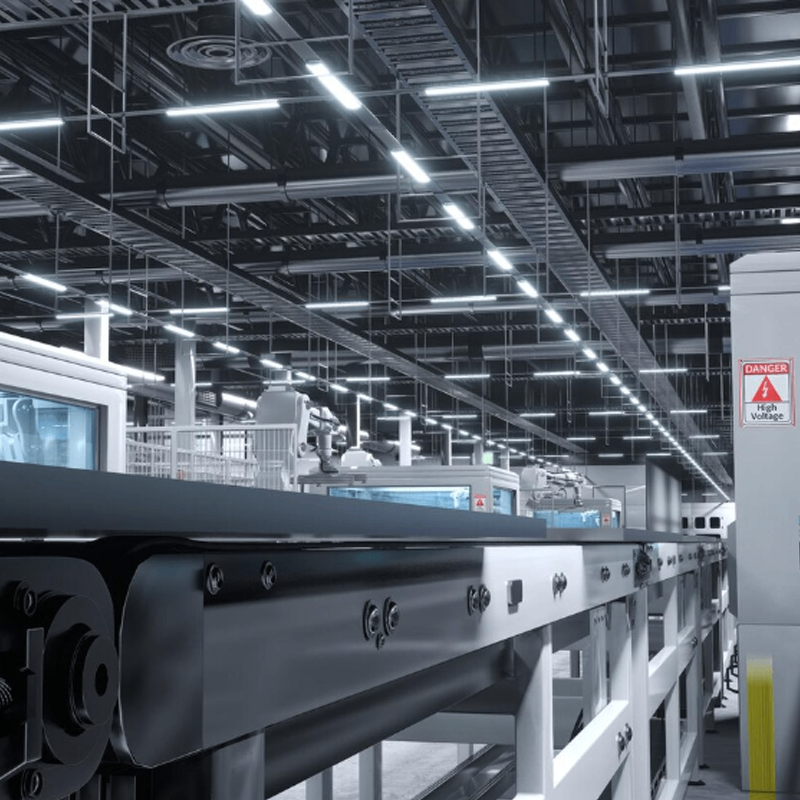

Applications
Perfectly suited for:
Linear motors
Linear modules / linear motion modules
Linear stages
Advanced automation and precision motion control systems
Technical Specifications
|
Description |
Parameter |
|
Resolution |
1 μm |
|
Interface |
RS422, RS485 |
|
Repeatability |
≤±2.5μm @1μm resolution , 1.2mm gap |
|
Positioning Accuracy |
≤50μm, depends on the module |
|
Position update time |
< 6μs, during communication |
|
Max Measuring Length |
82 meters |
|
Maximum Speed |
5 m/s |
|
Sensing Distance |
≤ 2mm , optimal 1.2±0.3 mm |
|
Working Voltage |
5V±5% |
|
Absolute Position Startup Time |
< 400 ms |
|
Operating current |
<200mA , 25℃ room temperature |
|
Output Signal |
Differential signal (RS422) / Serial protocol (RS485) |
|
Load current |
±40 mA |
|
ESD protection |
RS422 , HBM, max. ±20kV; RS485 , HBM, max. ±15kV |
|
Cable Length |
Default: 0.5M, max: 20M |
|
Interface Frequency |
BISS-C , RS422 , Max clock = 5Mhz SSI , RS422 , Max clock = 1Mhz MODEBUS-RTU , RS485 , Baud Rate: 256K Tamagawa , RS485 , Baud Rate 2.5M , 24bit |
|
Housing Material |
Alμminμm |
|
Connector type |
DB9 / DB15 / SCSI-26 / SM-6P , customizable, no connector |
|
Overall Dimensions |
93*23*11MM |
|
Mounting Hole Spacing |
86 mm |
|
Operating Temperature |
-20 ... 80℃ |
|
Protection Rating |
IP67 |
|
Max allowed External Magnetic Field |
0.5 mT |
