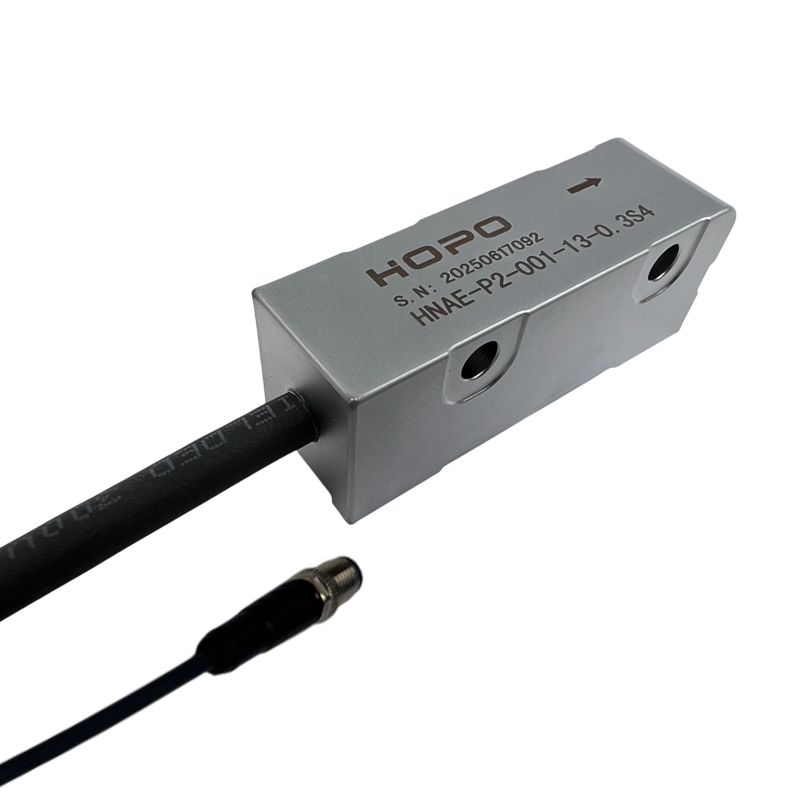

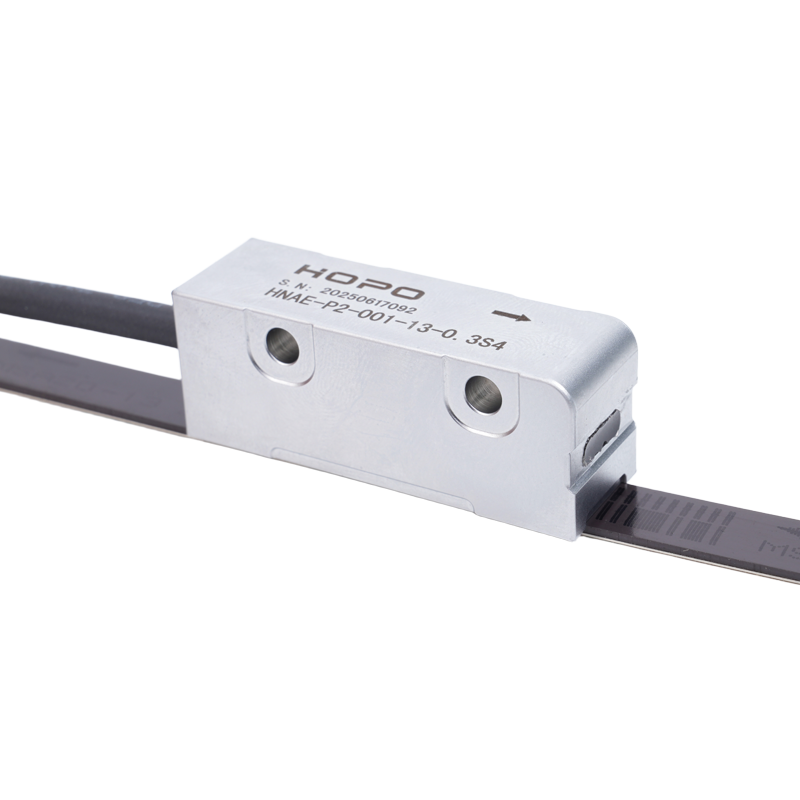

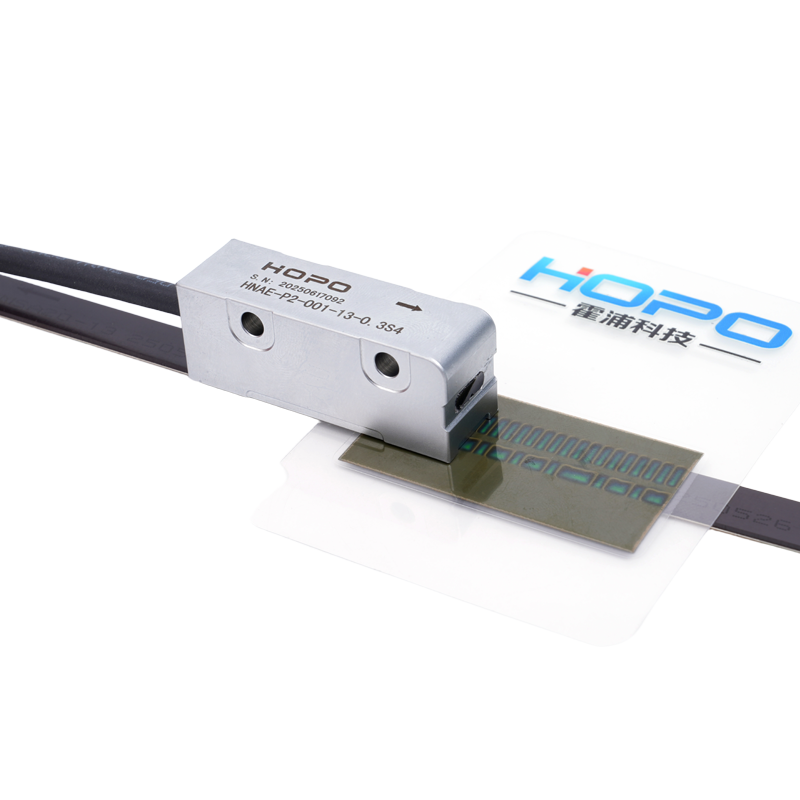

HNAE Series Absolute Magnetic Linear Encoder
The HNAE Series is a high-performance absolute magnetic linear encoder designed for precision motion control in demanding industrial environments with IO-link signal. Featuring a true absolute system with resolution down to 0.1 μm, it ensures instant, accurate position detection without referencing. With rugged IP67 protection, high speed, and IO-Link compatibility, the HNAE Series is widely adopted in lithium battery manufacturing and other advanced automation applications.
Key Benefits
True absolute accuracy – no homing required, immediate position feedback
Ultra-high precision – resolution up to 0.1 μm for demanding processes
High-speed measurement – reliable performance up to 7 m/s
Rugged and durable – IP67 protection against dust, water, and harsh conditions
Smart diagnostics – intelligent error notification for reduced downtime
Flexible integration – IO-Link bus compatibility for modern automation systems
Long measuring range – supports applications up to 16.4 m
Technical Specifications
|
Description |
Parameter |
|
Resolution |
0.1 -10 μm |
|
Interface |
IO-LINK,COM3, 230.4 kBaud |
|
Repeatability |
≤±1μm @1μm resolution , 0.3mm gap |
|
Positioning Accuracy |
≤30μm, depends on the module |
|
Position update time |
< 5μs, during communication |
|
Max Measuring Length |
16.4 meters |
|
Maximum Speed |
8 m/s@>=0.5μm |
|
Sensing Distance |
≤ 0.8 mm , optimal 0.3±0.1 mm |
|
Working Voltage |
18-30V DC |
|
Absolute Position Startup Time |
< 400 ms |
|
Operating current |
<50mA , 25℃ room temperature |
|
Output Signal |
IO-Link |
|
Cable Length |
Default: 0.3M |
|
Housing Material |
Aluminum |
|
Connector type |
M12-4P aviation plug |
|
Overall Dimensions |
50*16*18.6MM |
|
Mounting Hole Spacing |
25 mm |
|
Operating Temperature |
-20 ... 80℃ |
|
Protection Rating |
IP67 |
|
Max allowed External Magnetic Field |
0.5 mT |
