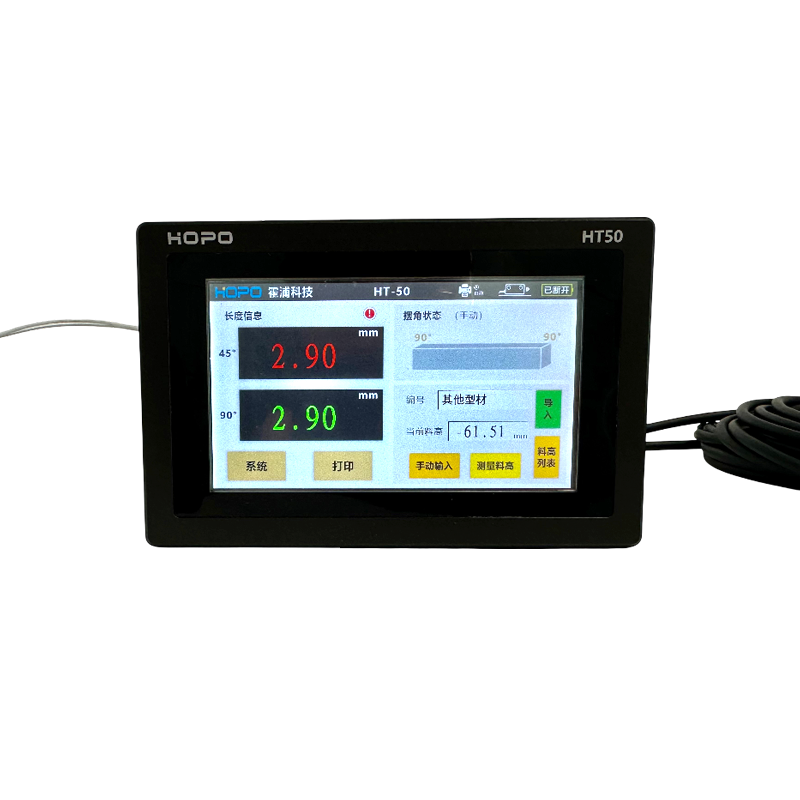

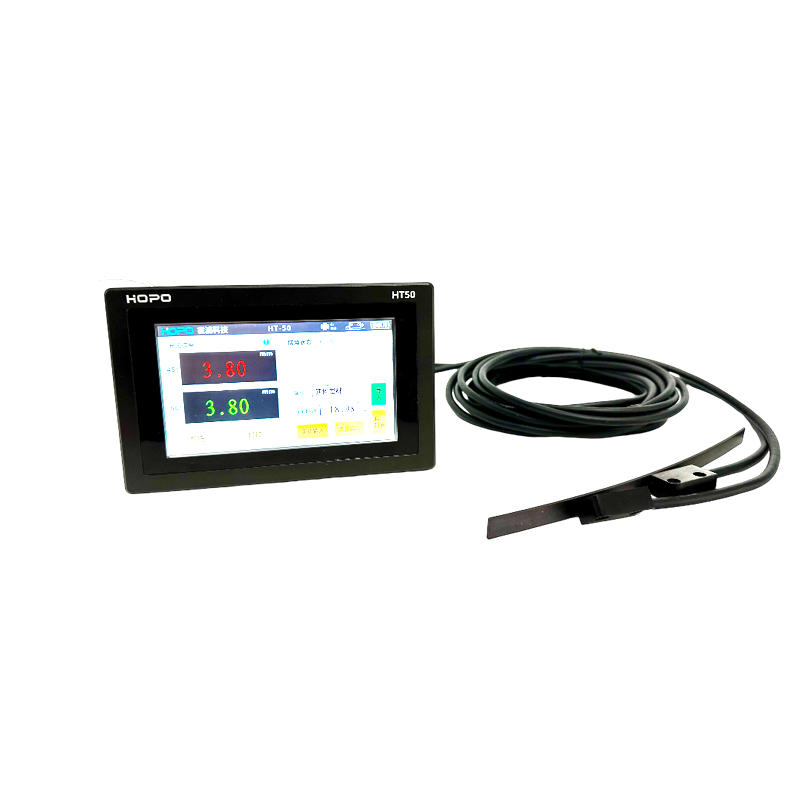

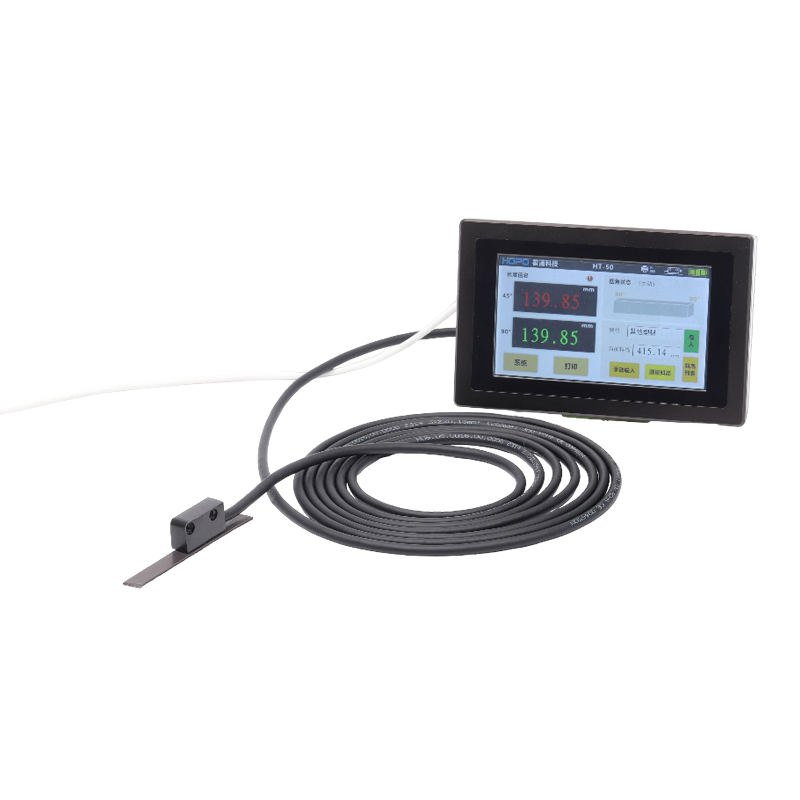

HT50 Digital Readouts DRO
Parameters:
- Positioning Accuracy: ±(0.03+0.01*L)mm L units:meters
- Repeatability: Max ±0.01 mm
- Resolution: 0.01, 0.05, 0.1, 1
- Display Range: -1999999 ~ 1999999
- Consumption Current: Max. 650 uA
Contact Us Now
The HT50 Digital Readout is built for efficiency and reliability, making measurement and data handling faster and easier. It features quick and easy length data storage for seamless operation, while a lithium battery backup memory ensures data retention even during power-off. With advanced functions such as swing angle mode, swing angle compensation, and multi-segment compensation, the HT50 delivers greater accuracy and flexibility across diverse applications.
| Positioning Accuracy | ±(0.03+0.01*L)mm L units:meters |
|---|---|
| Repeatability | Max ±0.01 mm |
| Resolution | 0.01, 0.05, 0.1, 1 |
| Display range | -1999999 ~ 1999999 |
| Consumption Current | Max. 650 uA |
| Power | Outer: DC: 12-24V, Built-in 3.7V battery |
| Operating Temperature | 0ºC ~ 60ºC |
| Storage Temperature | -10ºC ~ 70ºC |
| Overall Dimensions | 153*98*37 mm |
| Opening dimensions | 147*92 mm |
| Readhead cable length | 3 meters default |
| Sensing Distance | Max. 2.5 mm, Optimal 1.5mm |
| Travel Speed | Max 1.6m/s |
| Matched Scale | MS50 |
| Protection Rating | Display Unit: IP40, Readhead: IP65 |
| Weight | Max 777 grams |
