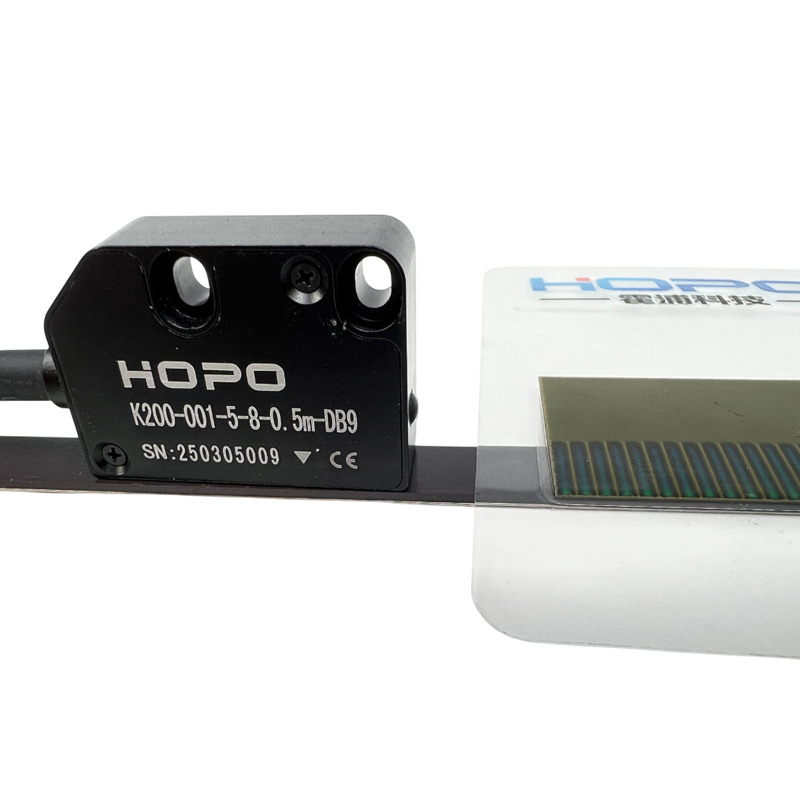

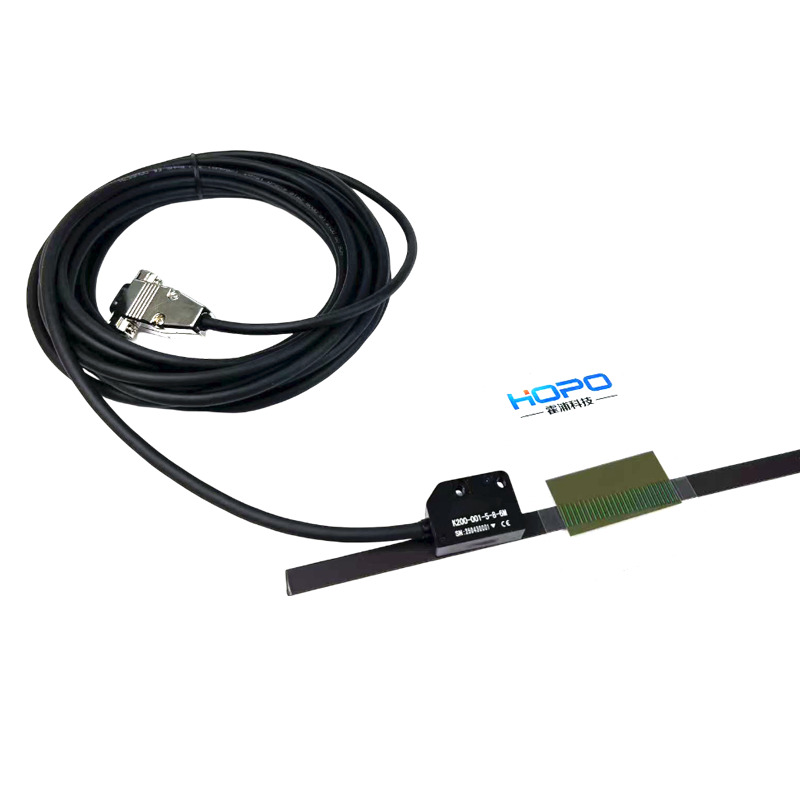

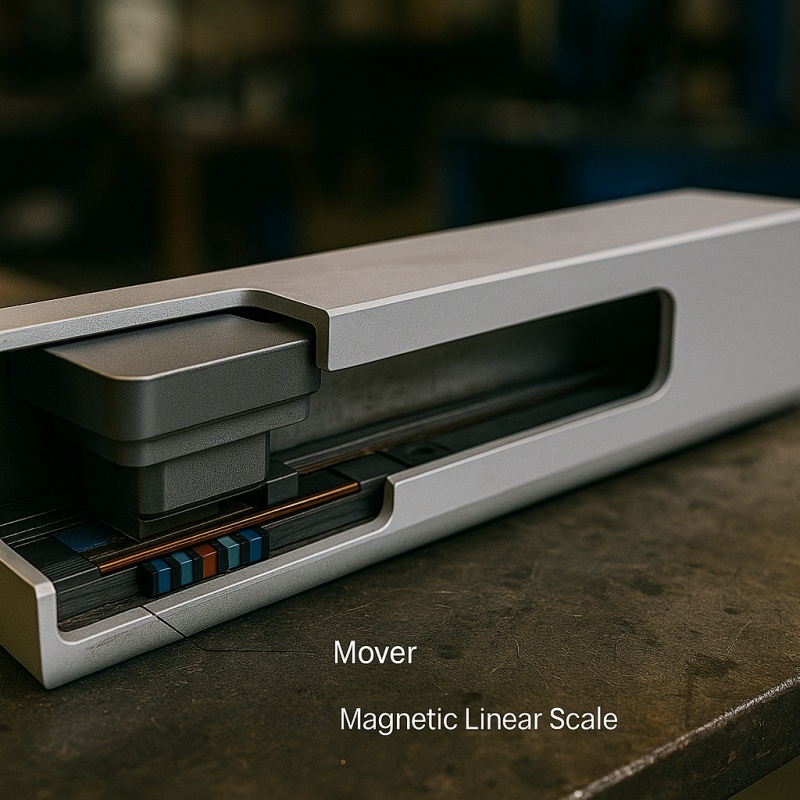

The K200 Series is a high-speed, high-precision magnetic encoder designed for linear motion control systems such as linear motors, linear stages, and automation modules. With 1 μm resolution, ultra-high speeds up to 9 m/s, and excellent contamination resistance, it delivers reliable performance even in demanding industrial environments. Supporting measurement lengths up to 50 m, the K200 Series combines durability with flexible installation options to meet diverse application needs.
High precision and speed for advanced automation and motion control
Reliable in harsh environments thanks to strong contamination resistance
Long service life with robust non-contact design and durable cabling
Flexible integration with multiple output options and easy installation
Reduced downtime through quick diagnostics with external LED indicator
| Description | Parameter |
|---|---|
| Sensor Material | Aluminum |
| Sensing Distance | 0.2-0.3mm |
| Overall Dimensions | 33*15*10MM |
| Mounting Hole Spacing | 26 mm |
| Matched Scale | MS20 |
| Cable Length | Default 3 Meters |
| Weight | 150g |
| Measuring Length | 50 Meters |
| Working Voltage | 5V |
| No-Load Current | 5V ：≤20mA |
| Operating Current | 5V ：≤60mA |
| Signal Feature | Quadrature AB pulses (90° phase separation) |
| Output Method | RS422 |
| Resolution | 1um |
| Positioning Accuracy | ＜60 μm |
| Repeatability | 1.5 μm |
| Moving Speed | Max.9m/s |
| Operating Temperature | -5 ... 70℃ |
| Storage Temperature | -25 ... 155℃ |
| Protection Rating | IP67 |
