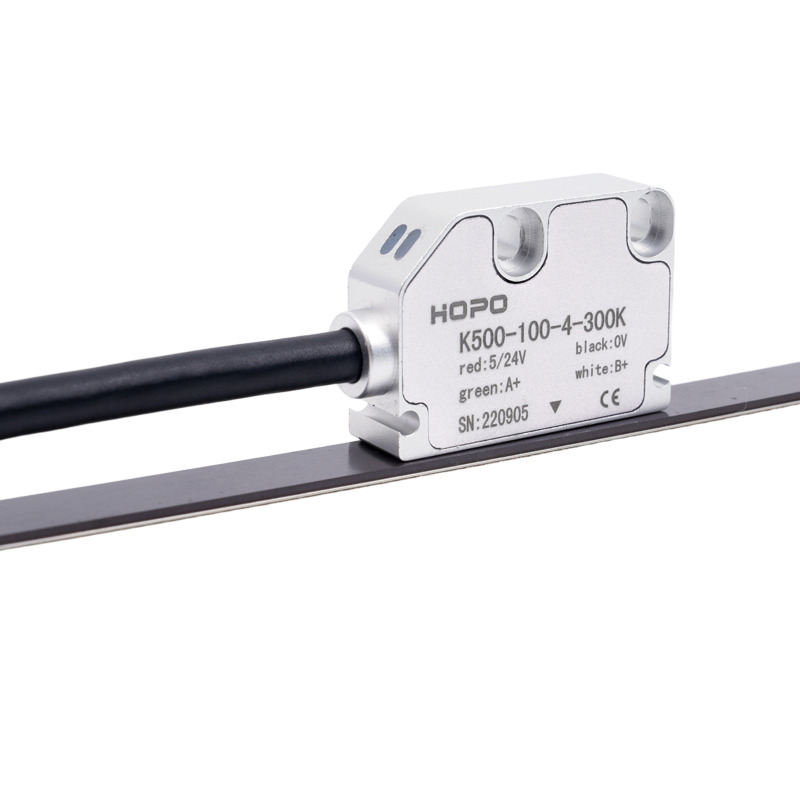

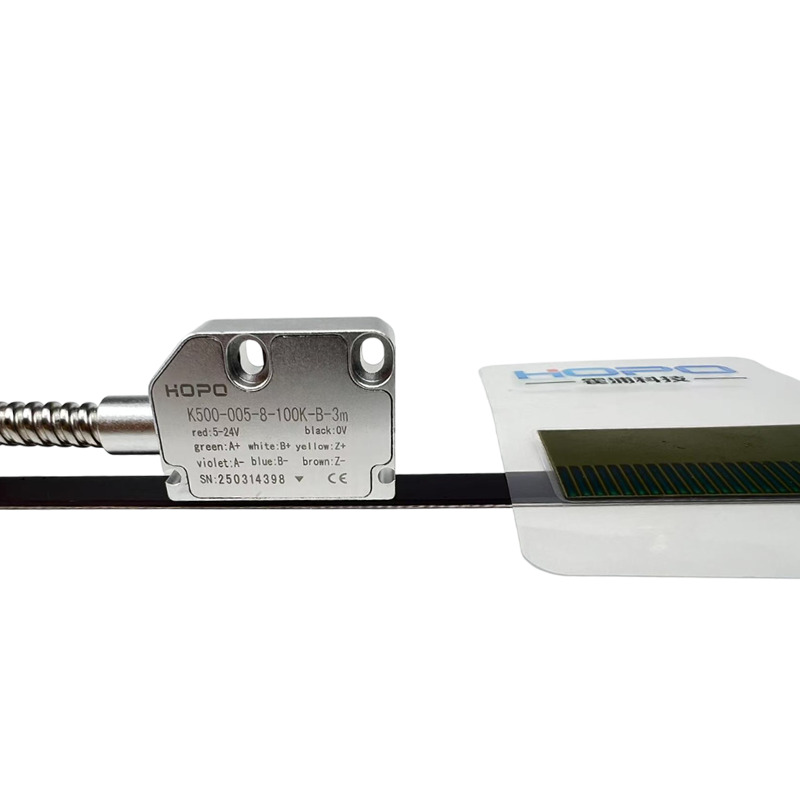

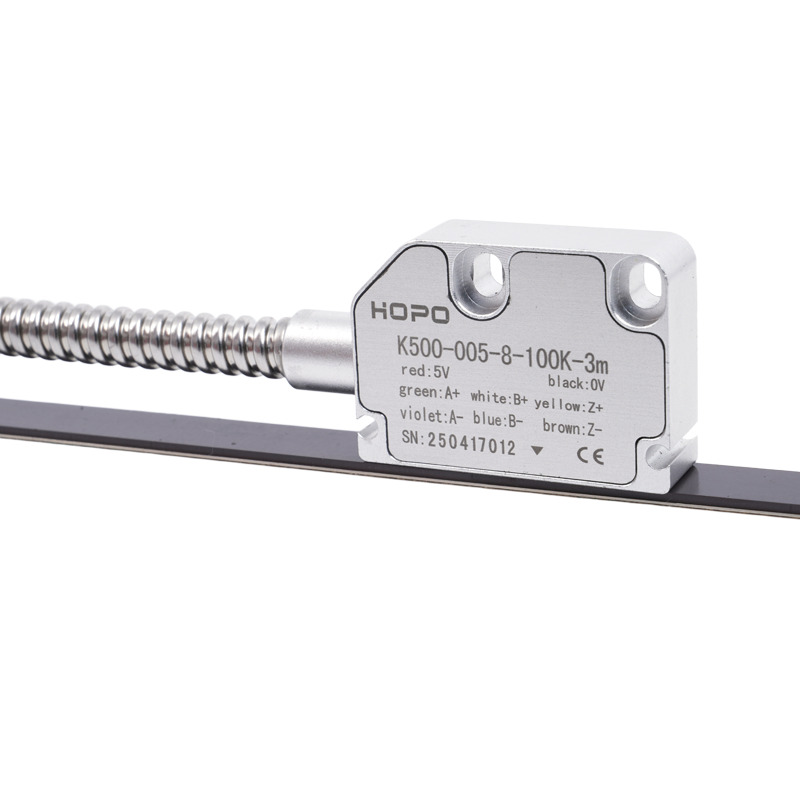

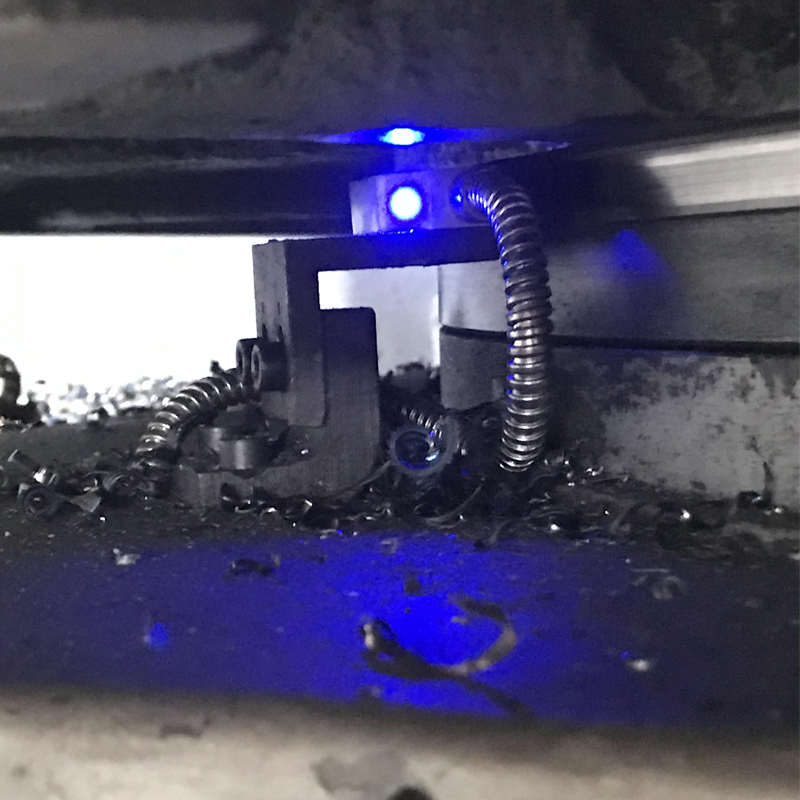

The K500/K200 Series magnetic encoder is designed for precision motion control in the machine tool and automation industries. Its non-contact, open design ensures wear-free operation and adaptability across diverse environments. The robust metal tube structure provides excellent resistance to contamination, making it especially suitable for high-precision metal cutting applications.
Equipped with dual LED indicators, installation and troubleshooting are quick and straightforward. The encoder features a highly durable ultra-flexible drag chain cable, tested to withstand more than 20 million bending cycles, ensuring long service life in demanding conditions. With universal 5V/24V voltage compatibility and versatile cable options (NC bare cable, DB9, DB15, or customized), it offers easy integration into different systems.
The K500/K200 Series delivers durability, accuracy, and flexibility—making it an ideal choice for high-demand industrial applications.
| Description | Parameter |
|---|---|
| Sensor Material | Zinc alloy |
| Sensing Distance | K500:2mm, K200:0.7mm |
| Overall Dimensions | 35*25*10MM |
| Mounting Hole Spacing | 17 mm |
| Matched Scale | MS50, MS20 |
| Cable Length | Default 3 Meters |
| Weight | 170g |
| Measuring Length | 50 Meters,100 Meters |
| Working Voltage | 5V~24V |
| No-Load Current | 5V:≤20mA; 24V:≤10mA |
| Operating Current | 5V:≤50mA; 24V:≤25mA |
| Signal Feature | Quadrature AB pulses (90° phase separation) |
| Output Method | RS422,TTL etc |
| Resolution |
K500：625、312.5、200、125、100、 62.5、50、40、20、12.5、10、5、2.5µm ; K200: 250、125、80、62.5、50、40、25、 20、16、12.5、10、8、5、4、2.5、2、1µm; |
| Positioning Accuracy | ＜30 μm |
| Repeatability | 3 μm |
| Moving Speed | 1.5m/s，2.4m/s，4.5m/s, customized |
| Operating Temperature | -5 ... 60℃ |
| Storage Temperature | -10 ... 70℃ |
| Protection Rating | IP67 |
