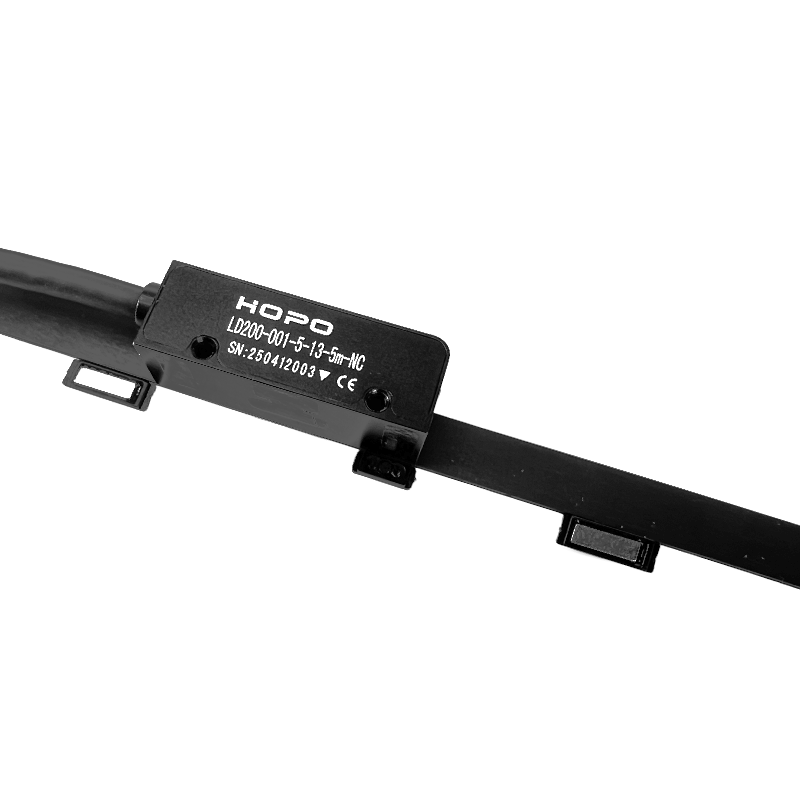

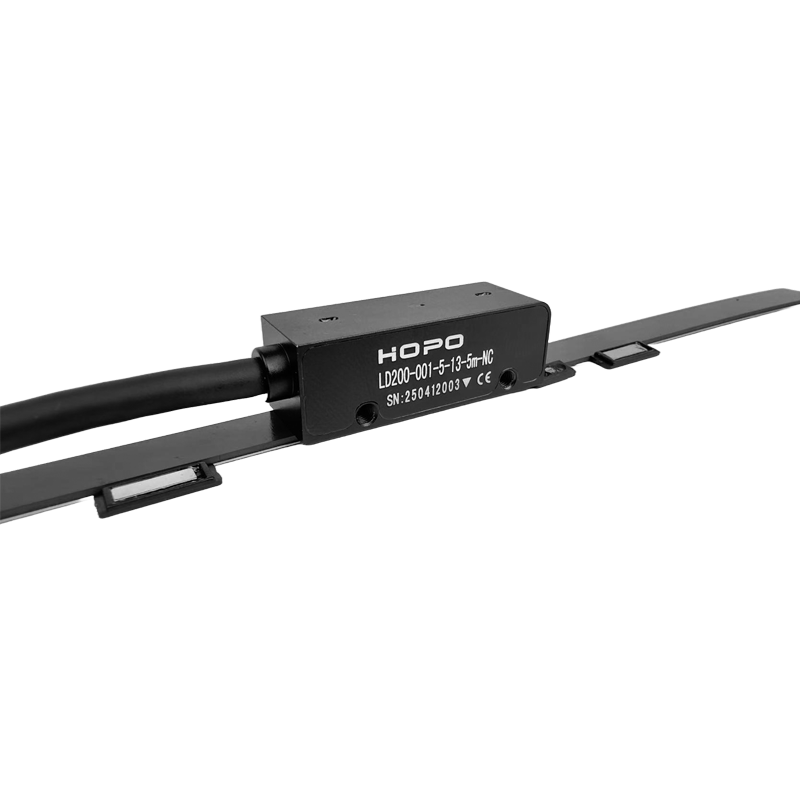

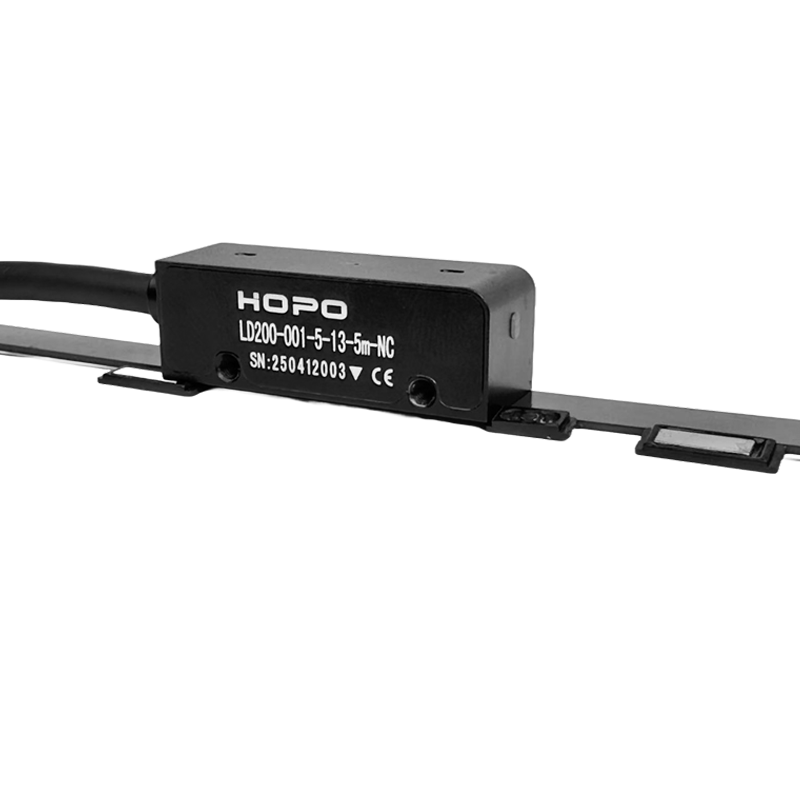

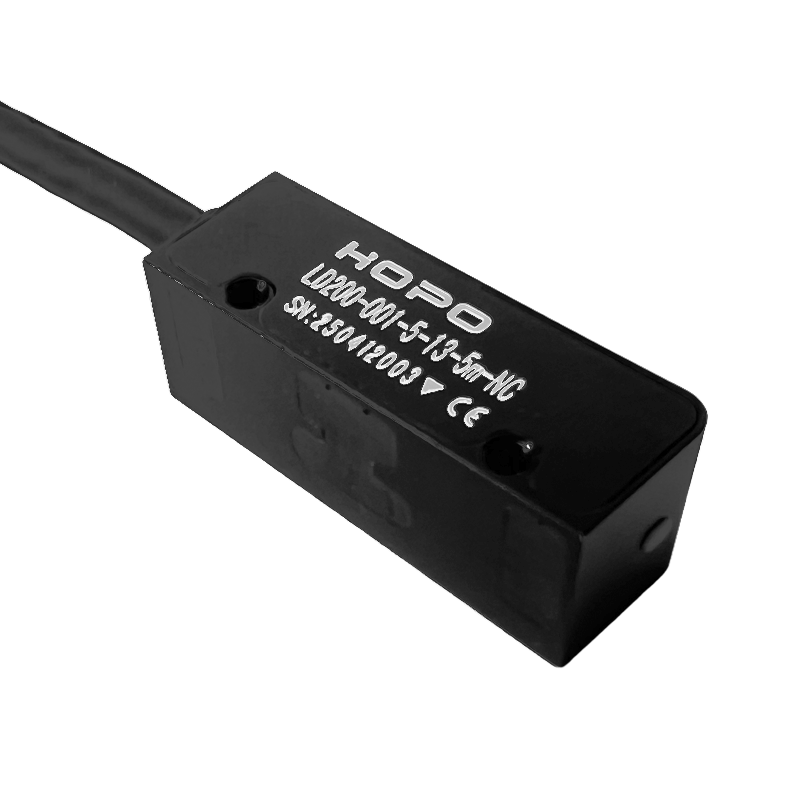

LD200 Series Magnetic Linear Encoder
The LD200 Series magnetic linear encoder Readhead is with Reference Point and Limit, Three Signals, Dual Assurance for Speed and Safety. This product offers plastic or aluminum limit and reference point assemblies, as well as bare magnets, for customer selection, facilitating integration into modules.
Key benefits include:
Integrated left/right limits & unique zero position Up to 5 m/s maximum speed
RS422 incremental output
Open-collector limit/home signals
Isolated 10V signal
LED alignment & limit indicators
High-flex cable (>10M cycles)
Wiring: NC leads, DB9S, or custom
The LD 200 Series provides a compact, robust, and precise solution—ideal for high-performance linear motion systems operating in tough industrial environments.
Technical Specifications
|
Description |
Parameter |
|
Working Voltage |
5V |
|
Operating Current |
<65mA |
|
Resolution |
1 µm |
|
Positioning Accuracy |
<60µm |
|
Repeatability |
1.5µm |
|
ABZ Output |
RS422, TTL |
|
Signal Feature |
Square waves 90° phase difference |
|
T、H limit signal |
5-24V open-collector output |
|
R& zero Point Signal |
5-24V open-collector output |
|
Max Measuring Length |
50M |
|
Maximum Speed |
Max 5m/s |
|
Max Cable Length |
30M |
|
Cable outlet method |
Direct outlet |
|
Sensor Material |
Aluminum |
|
Sensing Distance |
0.2-0.3 mm |
|
Overall Dimensions |
44*15*15 mm |
|
Mounting Hole Spacing |
26 mm |
|
Matched Scale |
MS20 |
|
Cable Length |
Default 0.5 meters |
|
Weight |
180 grams |
|
Operating Temperature |
-30 ... 80℃ |
|
Storage Temperature |
-40 ... 105℃ |
|
Protection Rating |
IP67 |
