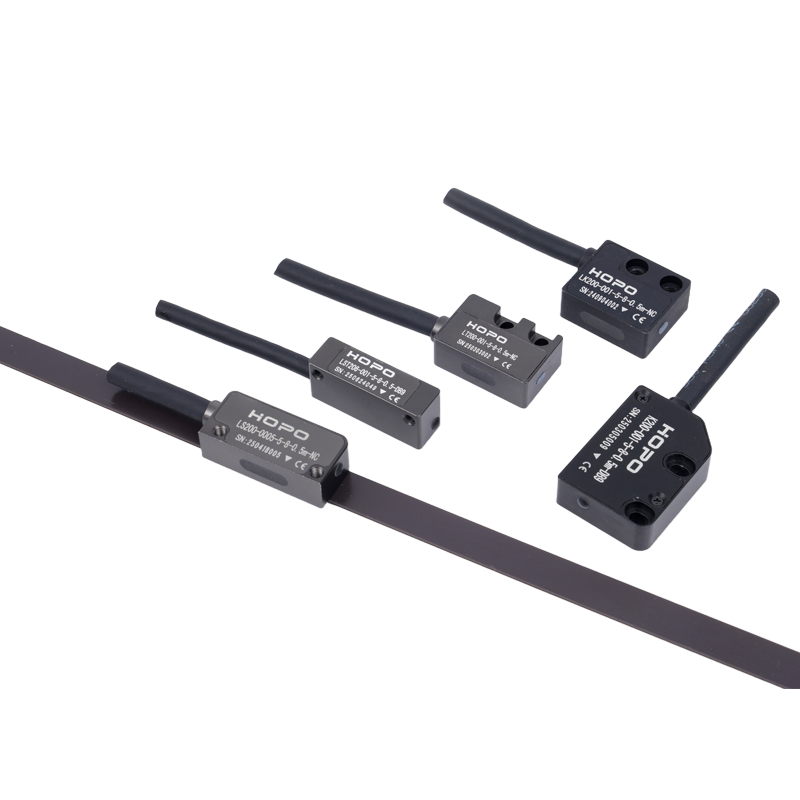

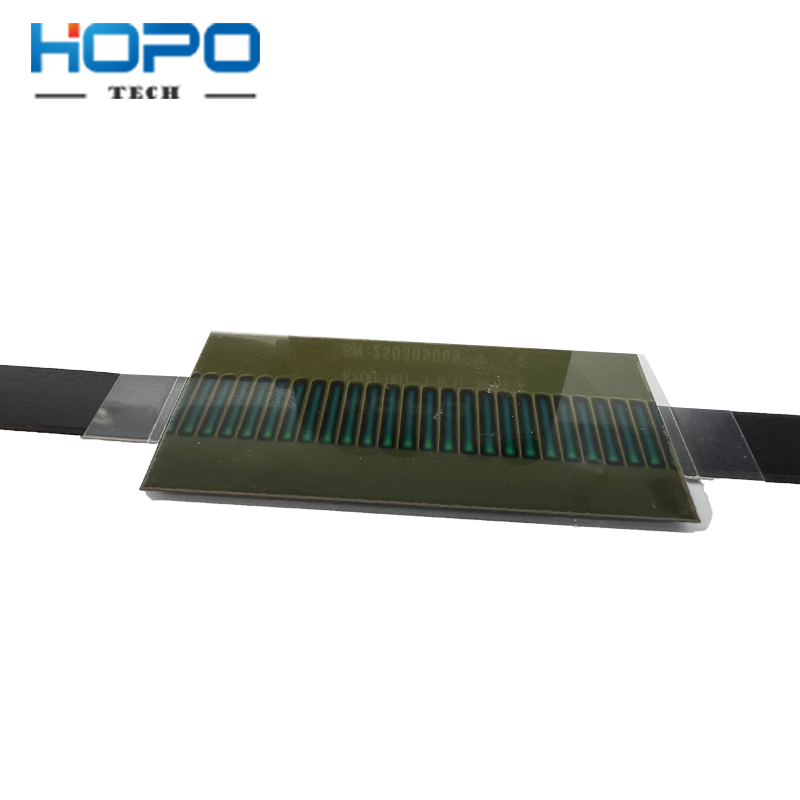

The LK/LKR Series is a precision incremental magnetic encoder designed for linear motions and widely applied in linear motors, linear stages, linear motion modules, and other automation equipment. With a unique built-in origin sensor that provides a single Z signal across the entire travel range, it ensures accurate referencing in high-speed applications. Offering a fine resolution of 0.5 μm and operating speeds up to 8 m/s, the LK Series delivers reliable and stable output even in demanding industrial environments.
Accurate referencing with a unique, full-range Z signal
High precision and speed for advanced motion control systems
Durable and long-lasting with non-contact sensing and IP67 sealing
Reliable in tough conditions with wide temperature range and shock/vibration resistance
Easy integration and maintenance with LED diagnostics and flexible cabling
| Description | Parameter |
|---|---|
| Working Voltage | 5V |
| Operating Current | 60mA Max |
| Resolution | 0.5 µm (max) |
| Output Signal | ±ABZ |
| Positioning Accuracy | ≤40µm |
| Repeatability | ±1µm |
| Max Measuring Length | 50M |
| Maximum Speed | 8m/s |
| Max Cable Length | 30M |
| Cable outlet method | Direct outlet |
| Sensor Material | Aluminum |
| Sensing Distance | ＜1mm |
| Overall Dimensions | 25.5*21.8*10MM |
| Mounting Hole Spacing | 10mm |
| Matched Scale | MS20, MSR20 |
| Cable Length | Default 0.5 meters |
| Operating Temperature | -30 ... 80℃ |
| Storage Temperature | -40 ... 105℃ |
| Protection Rating | IP67 |
