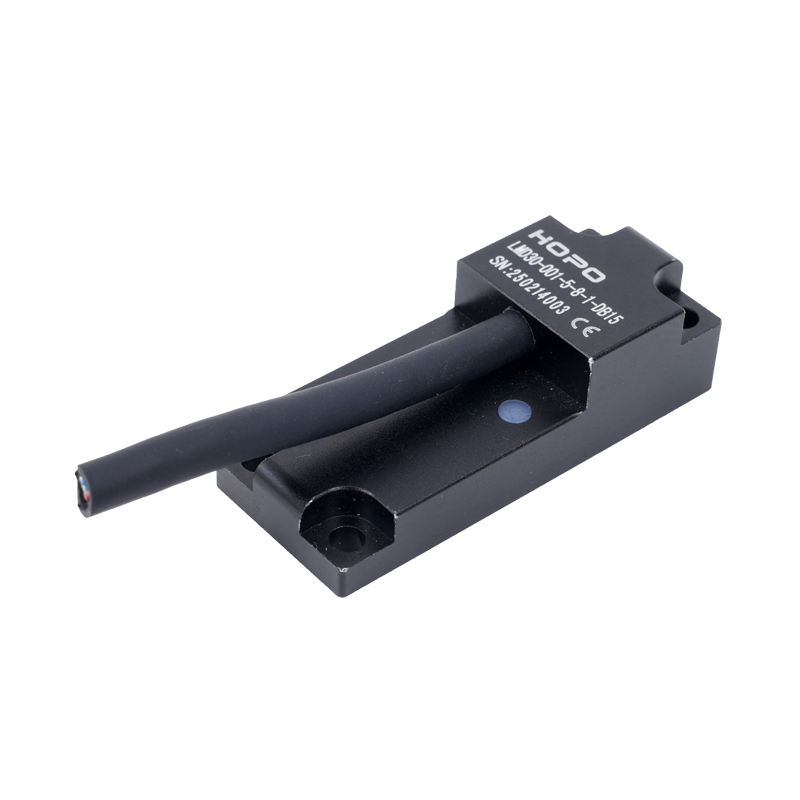

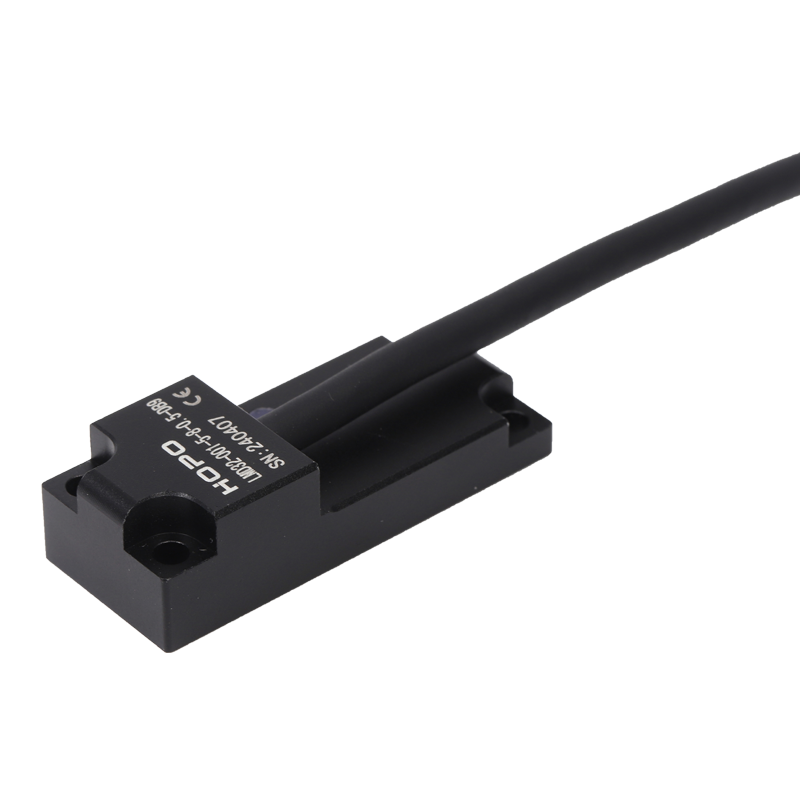

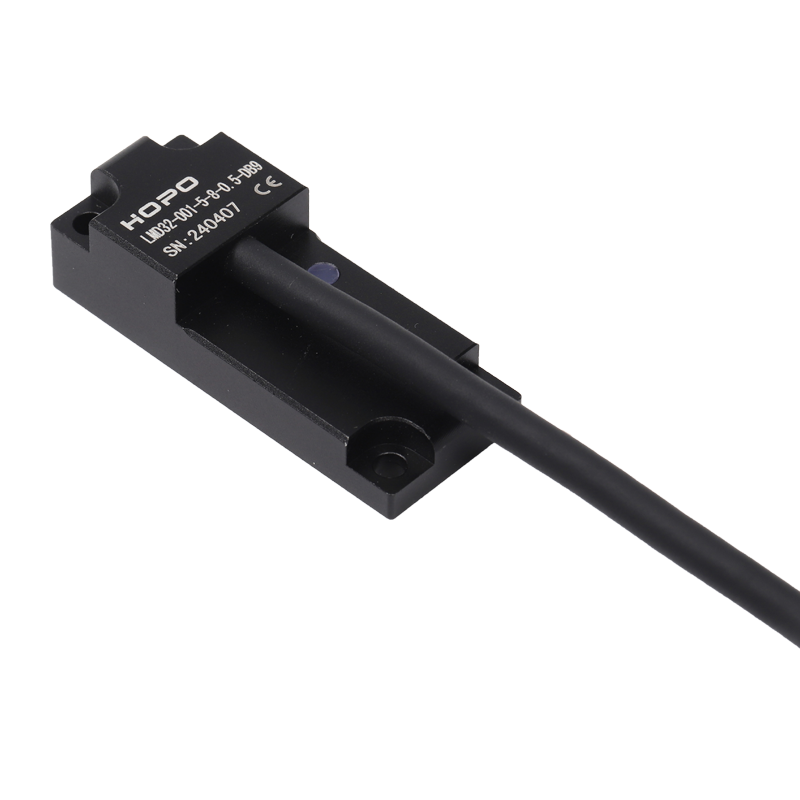

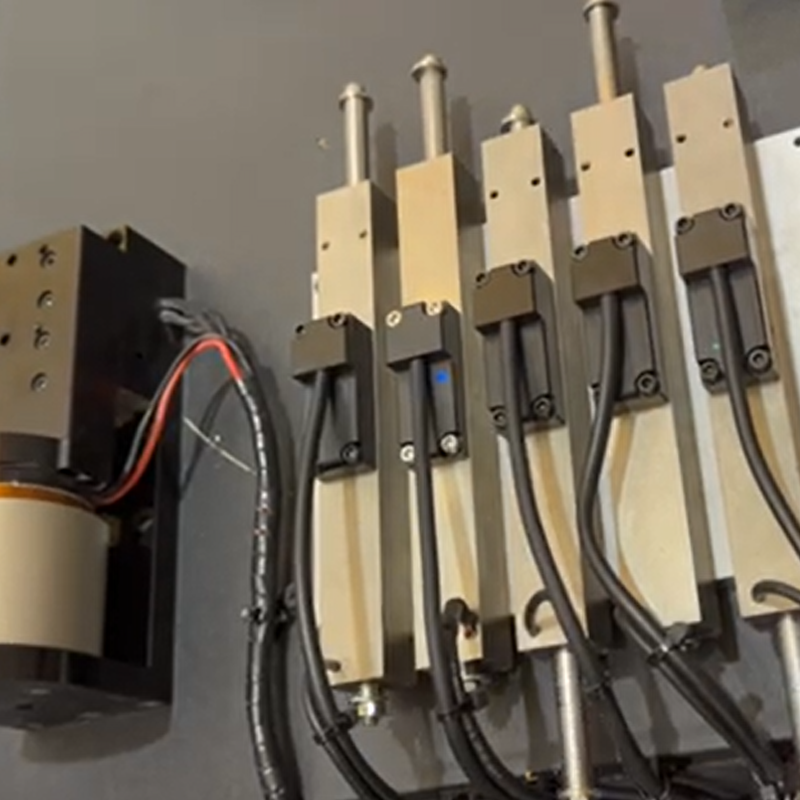

The LMD Series is a compact, rod-type incremental motor encoder designed for precise position feedback using the stator rod. Supporting any stator pitch and offering resolutions up to 1 μm, it ensures high accuracy across a wide range of applications. With industry-standard RS422 outputs and ±ABZ incremental digital signals, integration is simple and reliable. An integrated LED indicator makes installation and alignment quick and hassle-free.
Built for demanding environments, the LMD Series features a non-contact design, IP68 waterproof sealing, and a wide operating temperature range (-10°C to +80°C). Its ultra-flexible drag chain cable, tested for more than 20 million flex cycles, provides long-lasting durability. Resistant to shock, vibration, and pressure, the encoder delivers dependable performance even in harsh industrial conditions.
The LMD Series combines accuracy, robustness, and ease of use, making it an ideal solution for high-performance motion control in tough industrial environments.
| Description | Parameter |
|---|---|
| Working Voltage | 5V |
| Operating Current | 60mA max; |
| Resolution | 1µm |
| Output signal | ±ABZ |
| Positioning Accuracy | ≤500 μm |
| Repeatability | 3μm |
| Maximum travel Speed | 5m/s |
| Maximum cable Length | 30 Meters |
| Cable outlet | Direct cable exit |
| Sensor Material | Aluminum |
| Sensing Distance | 1/4 pitch width |
| Overall Dimensions | 47*18.9*13mm |
| Mounting Hole Spacing | 41*13 mm |
| Sensing Stator Pitch | 20, 24, 30, 32, 36mm |
| cable Length | Default 0.5m |
| Operating Temperature | -5 ... 70℃ |
| Storage Temperature | -20 ... 105℃ |
| Protection Rating | IP67 |
The LK/LKR Series is a precision incremental magnetic encoder designed for linear motions and widely applied in linear motors, linear stages, linear motion modules, and other automation equipment.

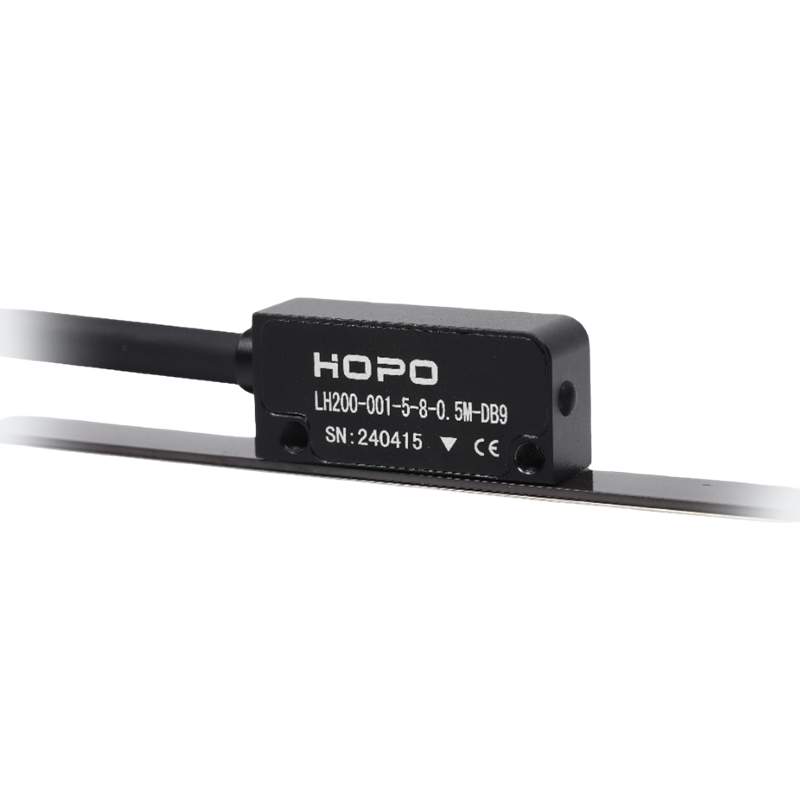

The LH200/LHR200 is a high-performance incremental magnetic encoder engineered for linear motors, direct-drive motors, and other precision motion applications.

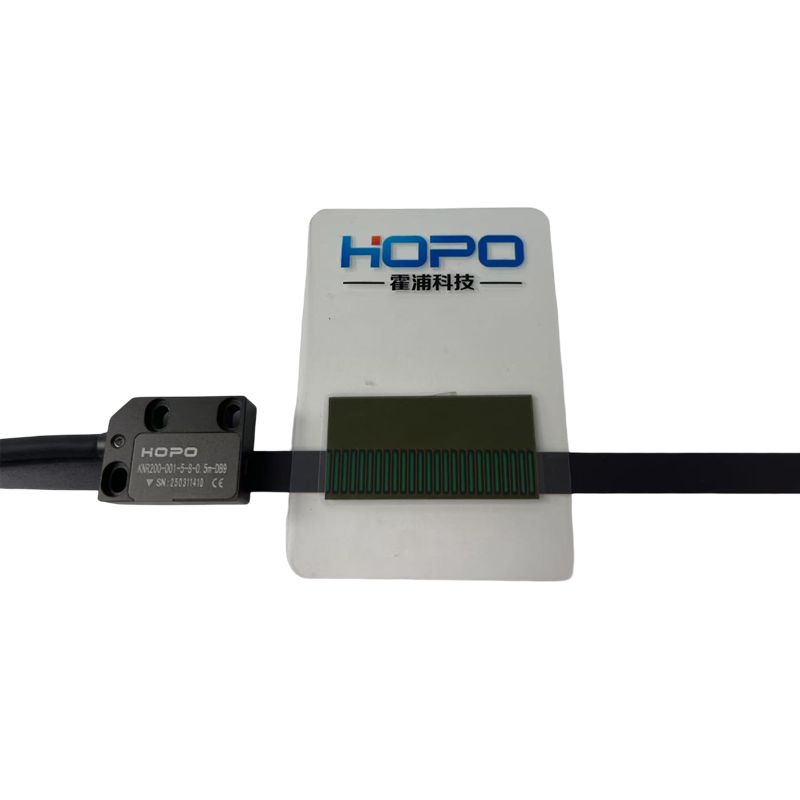

The KN/KNR Series is a high-performance magnetic linear encoder engineered for linear modules and demanding motion control applications.
