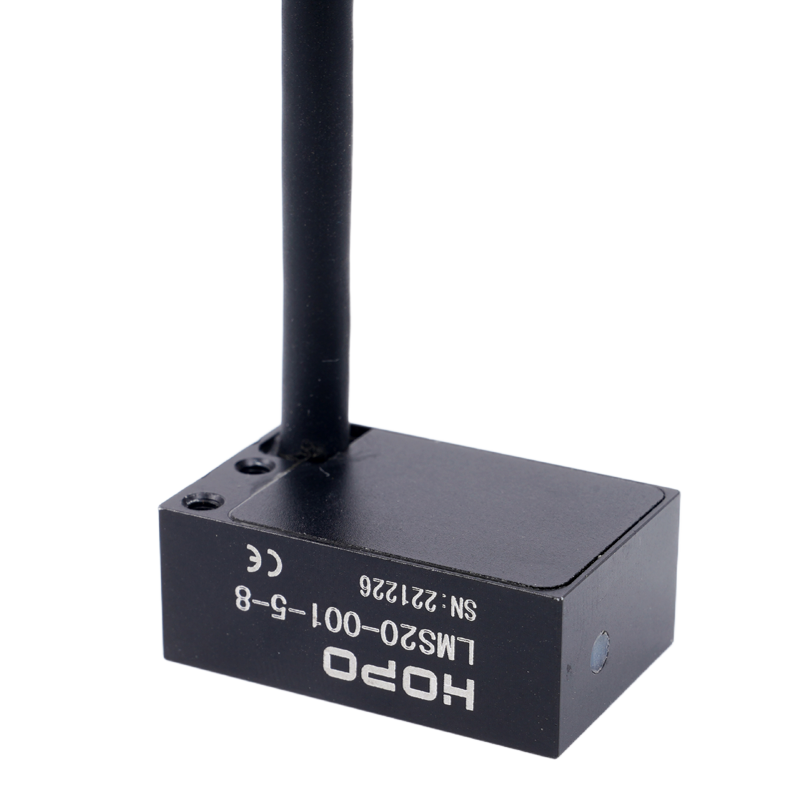

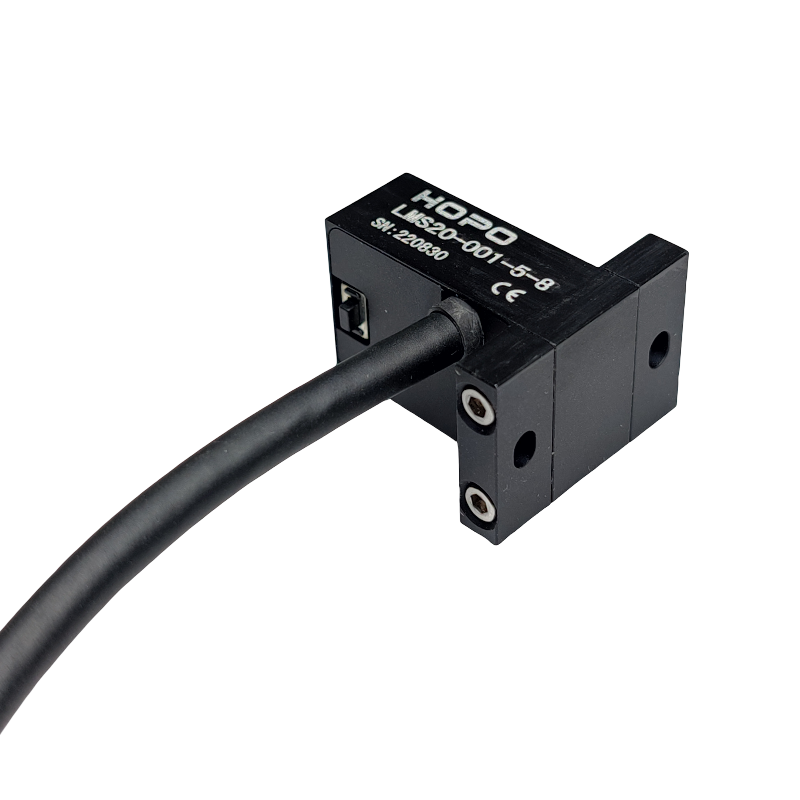

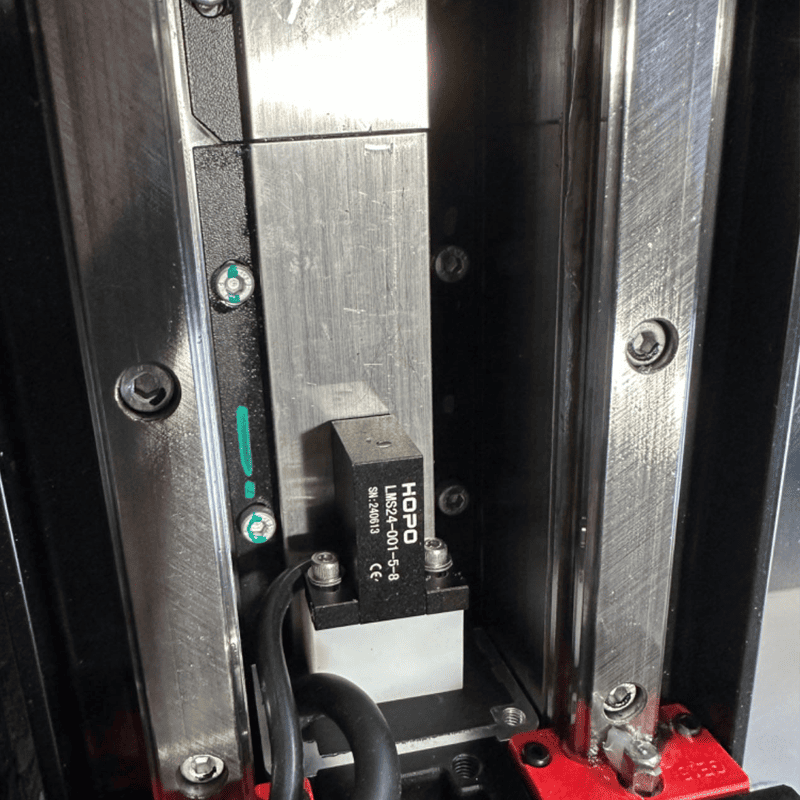

This high-performance magnetic encoder delivers 1 μm resolution with the ability to directly sense stators, supporting standard stator pitches of 20, 24, 30, 32, and 36. Designed for speed and reliability, it achieves operating speeds up to 5 m/s while maintaining repeatability of up to 3 μm.
With robust contamination resistance and an external LED installation/alignment indicator, setup and operation are simple and dependable. The encoder provides standard RS422 output, supporting both differential ABZ signals and single-ended UVW commutation signals for flexible system integration.

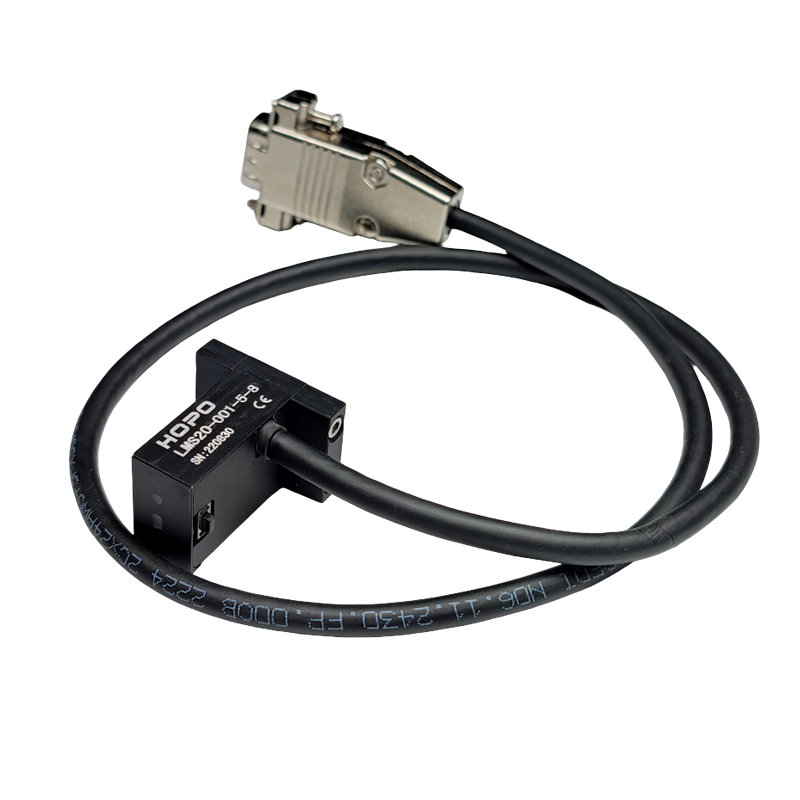

Its ultra-flexible drag chain cable, tested to withstand more than 20 million bends, ensures long-lasting durability, while cable options such as NC bare wire, DB15, and custom configurations offer easy adaptability to different applications.
| Description | Parameter |
|---|---|
| Sensor Material | Aluminum |
| Sensing Distance | 2mm |
| Overall Dimensions | 31*20*12mm |
| Sensing stator pitch | 20, 24, 30, 32, 36mm |
| Cable Length | Default 3 Meters |
| Weight | 150g |
| Measuring Length | 50 Meters |
| Working Voltage | 5V |
| No-Load Current | 5V:≤30mA; |
| Operating Current | 5V:≤120mA; |
| Position signal | ±A，±B |
| Commutation signal | UVW |
| Output Method | RS422 |
| Resolution | 1µm |
| Positioning Accuracy | 300 μm |
| Repeatability | ±2μm |
| Measuring Length | 50 Meters |
| Maximum travel Speed | 5m/s |
| Operating Temperature | -5 ... 70℃ |
| Storage Temperature | -25 ... 125℃ |
| Protection Rating | IP67 |
