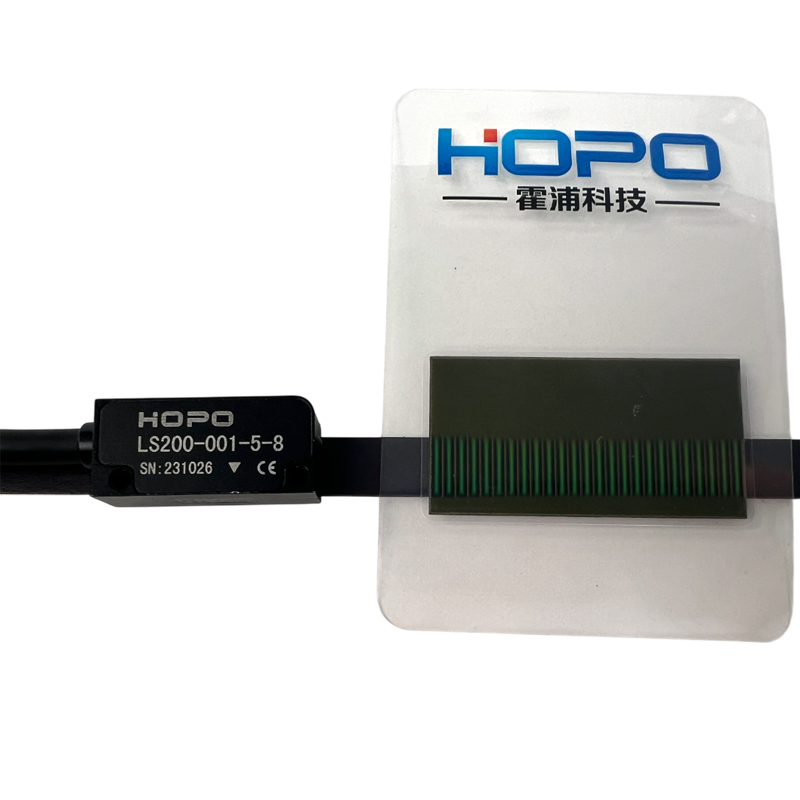

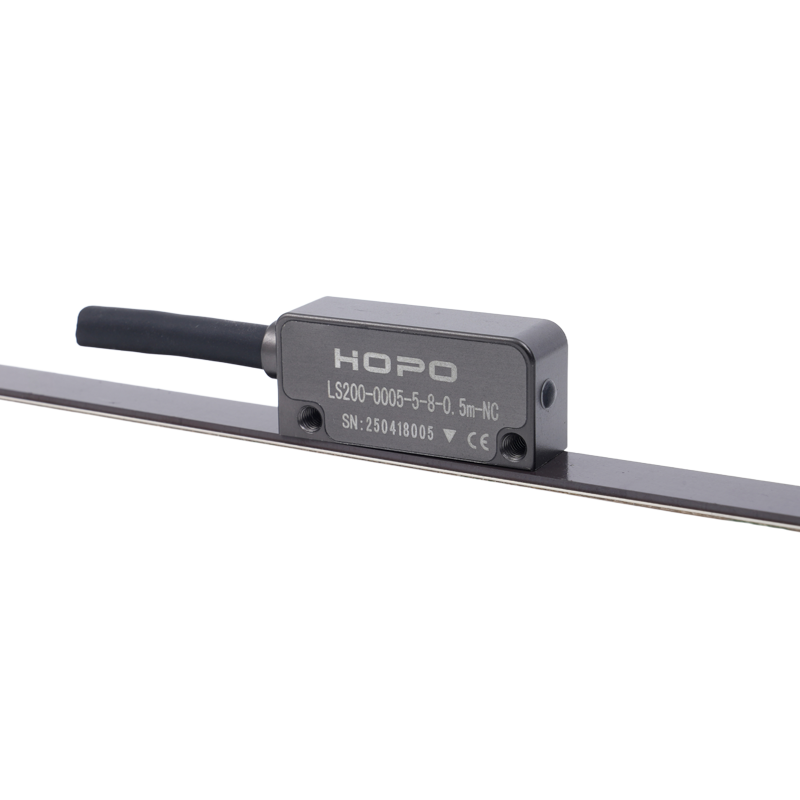

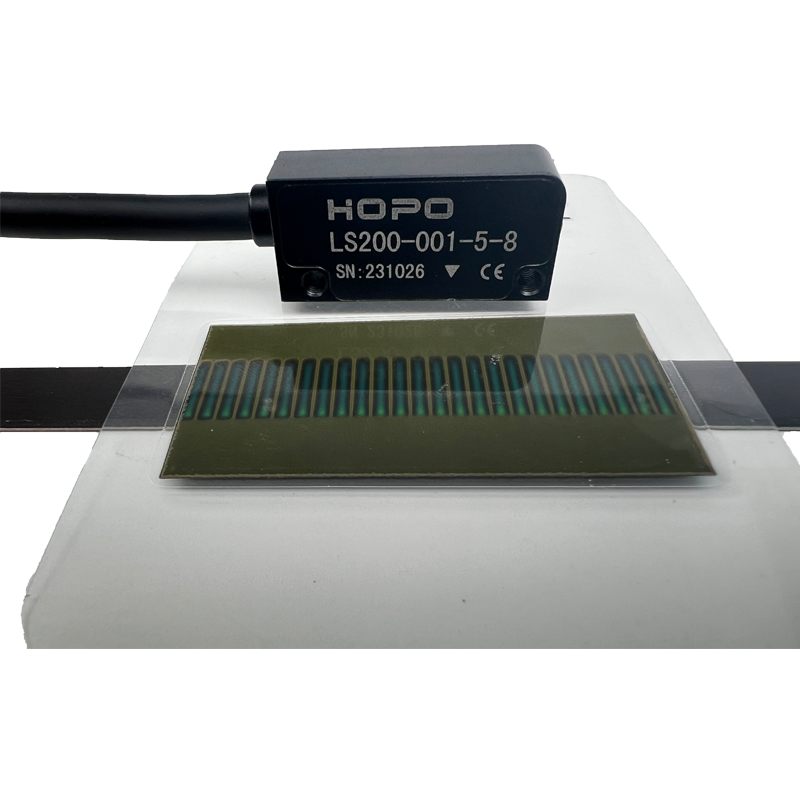

LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder
LS200 Incremental Magnetic Linear Encoder

LS200 Incremental Magnetic Linear Encoder

Key Features:
  • High-Speed Performance – stable 1 μm resolution at up to 5 m/s
  • Industrial-Grade Interface – RS422 differential output with quadrature signals and Z-phase index every 2 mm
  • Robust Design – non-contact sensing, wide 0.8 mm airgap, IP68 sealed housing, and 20+ million cable flex cycles
  • Environmental Resilience – shock, vibration, and temperature resistant (-10°C to +80°C)
  • Rugged performance with IP68 waterproof protection.
Contact Us Now

Description

Model Selection

Reviews

LS200 Incremental Magnetic Linear Encoder

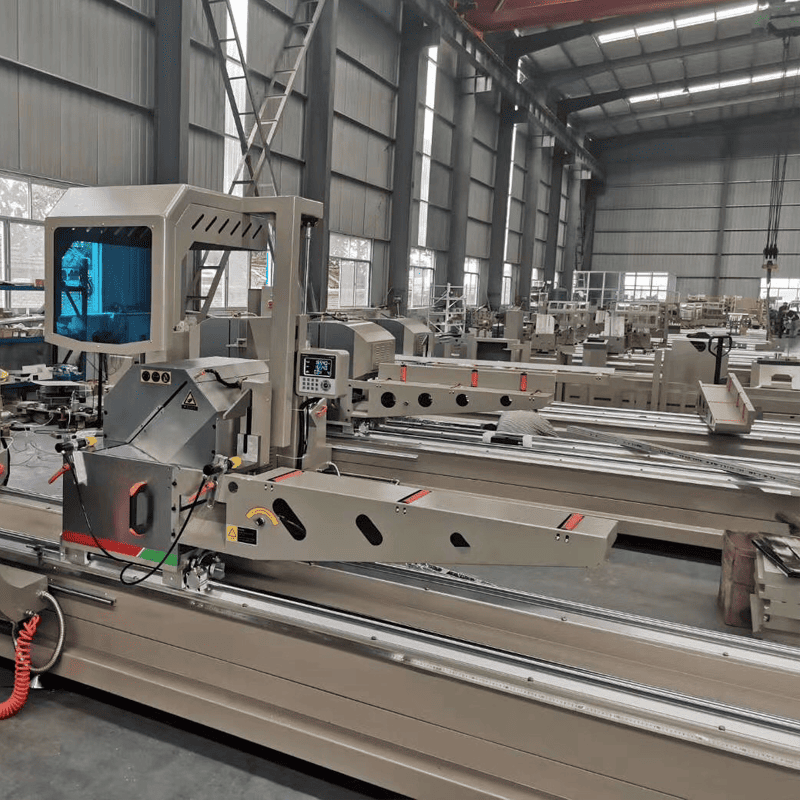

The LS200 is a cost-effective, high-performance incremental magnetic linear encoder designed for a wide range of automation motion control applications. Widely used in linear modules, it also supports linear motors, linear stages, and other linear motion equipment where speed, durability, and easy integration are essential.

Key Features

  • High-Speed Performance – stable 1 μm resolution at up to 5 m/s
  • Industrial-Grade Interface – RS422 differential output with quadrature signals and Z-phase index every 2 mm
  • Robust Design – non-contact sensing, wide 0.8 mm airgap, IP68 sealed housing, and 20+ million cable flex cycles
  • Environmental Resilience – shock, vibration, and temperature resistant (-10°C to +80°C)
  • User-Friendly – integrated LED fault indicator and tool-less installation with alignment guides

Benefits

Reliable and precise feedback for fast, dynamic motion systems

Long service life with non-contact and rugged IP68 design

Simplified setup and maintenance with built-in LED diagnostics

Versatile use across various linear motion control applications

Technical Specifications

Description Parameter
Working Voltage 5V
Operating Current 60mA Max
Resolution 1 µm (max)
Output Signal ±ABZ
Positioning Accuracy ≤50µm
Repeatability ±1µm
Max Measuring Length 50M
Maximum Speed 5m/s
Max Cable Length 30M
Cable outlet method Direct outlet
Sensor Material Aluminum
Sensing Distance ＜0.8mm
Overall Dimensions 33*15*10MM
Mounting Hole Spacing 26mm
Matched Scale MS20
Cable Length Default 0.5 meters
Operating Temperature -5 ... 70℃
Storage Temperature -20 ... 105℃
Protection Rating IP67
