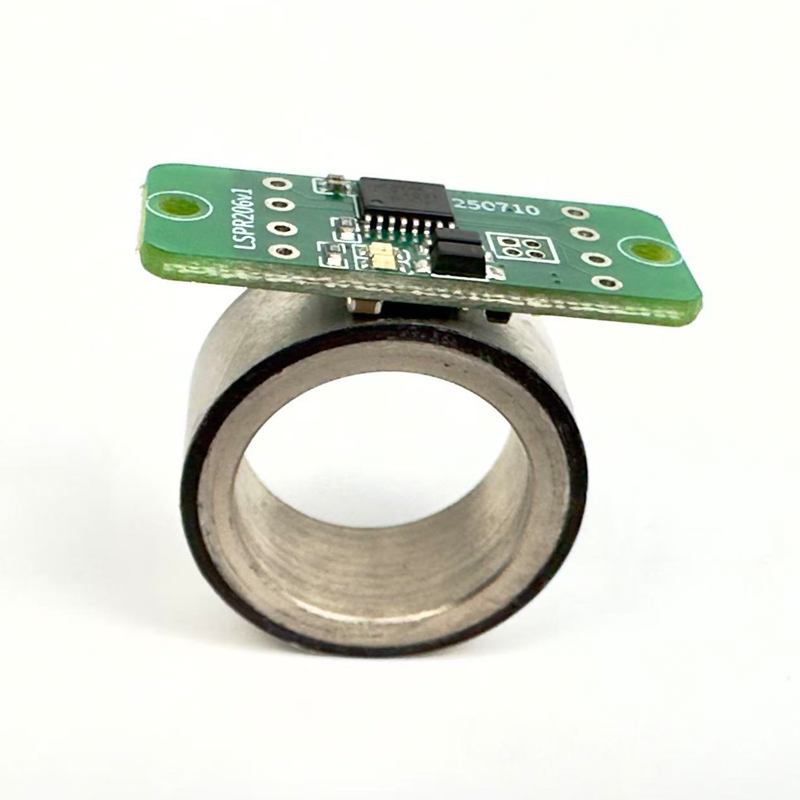

LSPR Series Magnetic Rotary Ring Encoder Readhead
The LSPR Series Encoder is a high-speed incremental encoder designed for magnetic ring disk applications. It combines performance, reliability, and easy installation for use in demanding industrial environments.
• Unique origin sensing module outputs one Z signal per revolution.
• AB output frequency up to 8 MHz, supporting linear speeds up to 40 m/s.
• Industry-standard RS422 signals: ±ABZ, quadrature AB, and Z.
• Easy installation with LED alarm indicator and wide sensing gap.
• Non-contact design for harsh environments; operating range: -30°C to +80°C.
Ideal for high-speed, high-precision feedback in magnetic ring systems across industrial environments.
Technical Specifications
|
Description |
Parameter |
Remark |
|
Working Voltage |
5V |
±5% |
|
Operating Current |
30mA Max |
No load; max 150mA |
|
Resolution |
Customizable |
Depends on ring disk |
|
Output Signal |
±ABZ |
Industrial RS422 Standard |
|
Max speed |
AB frequency Max 8MHz |
|
|

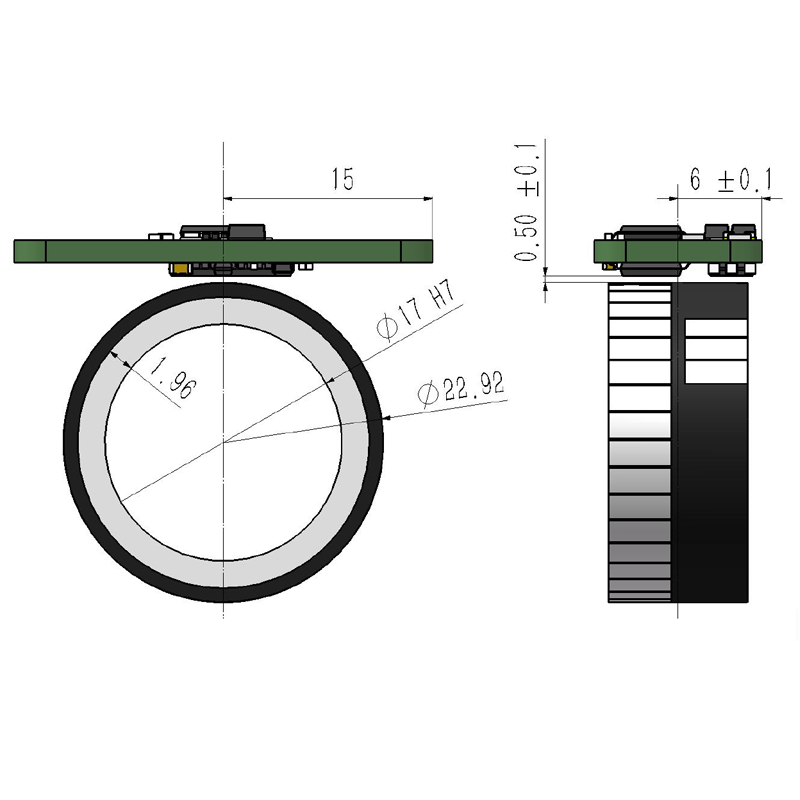

Sensing Distance |
0.5mm±0.2 |
|
|
Positioning Accuracy |
0.1° |
a count value width < 0.1° |
|
Repeatability |
±1 count value |
|
|

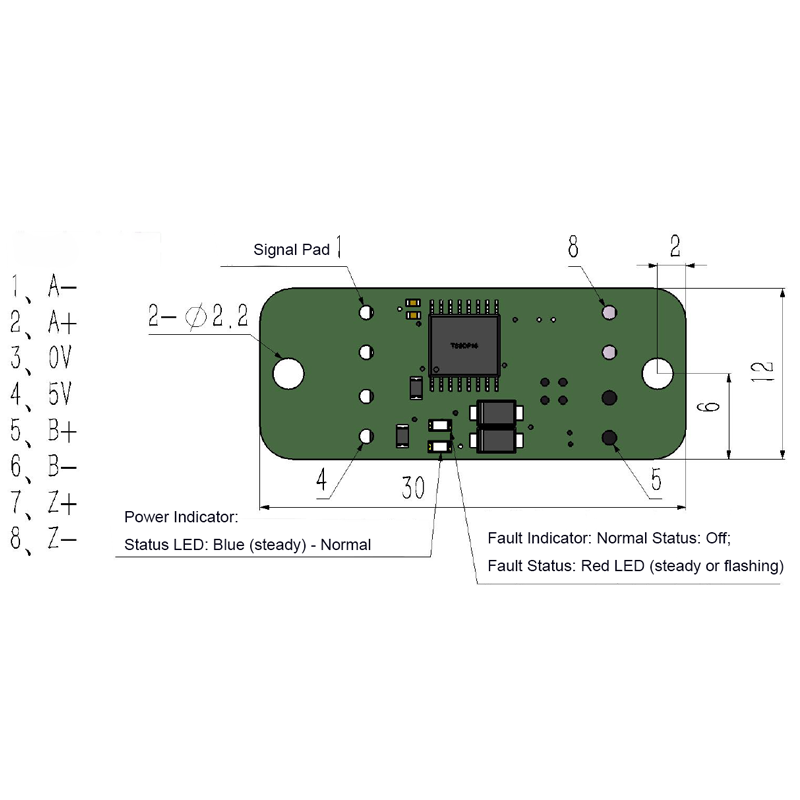

Overall Dimensions |
12*30mm |
|
|
Mounting Hole Spacing |
26 mm |
Φ2.2 |
|
Operating Temperature |
-30 ... 80℃ |
|
|
Storage Temperature |
-40 ... 105℃ |
|
|
Protection Rating |
IP67 |
|
