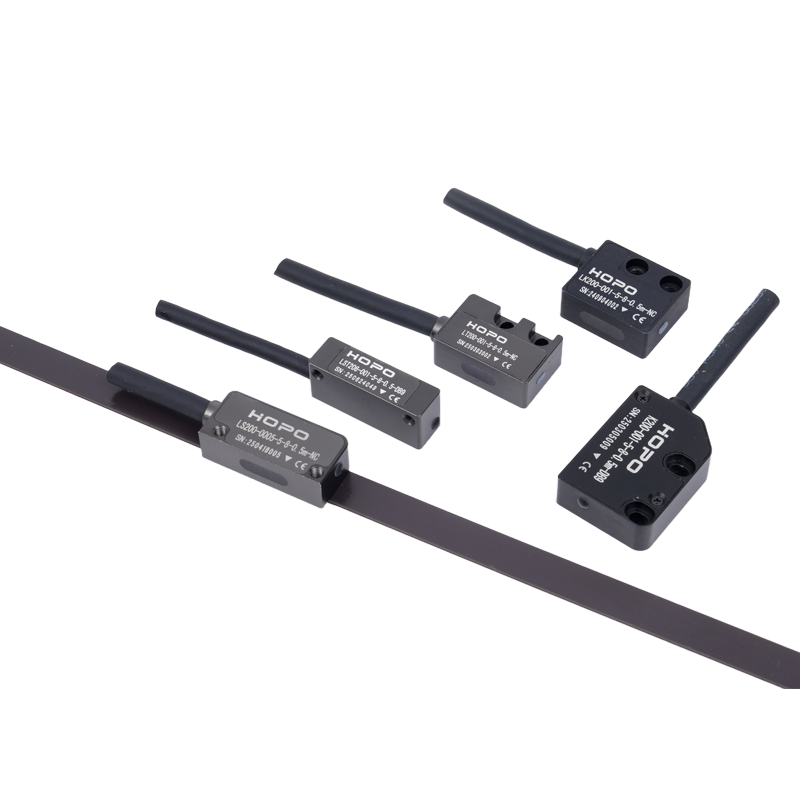

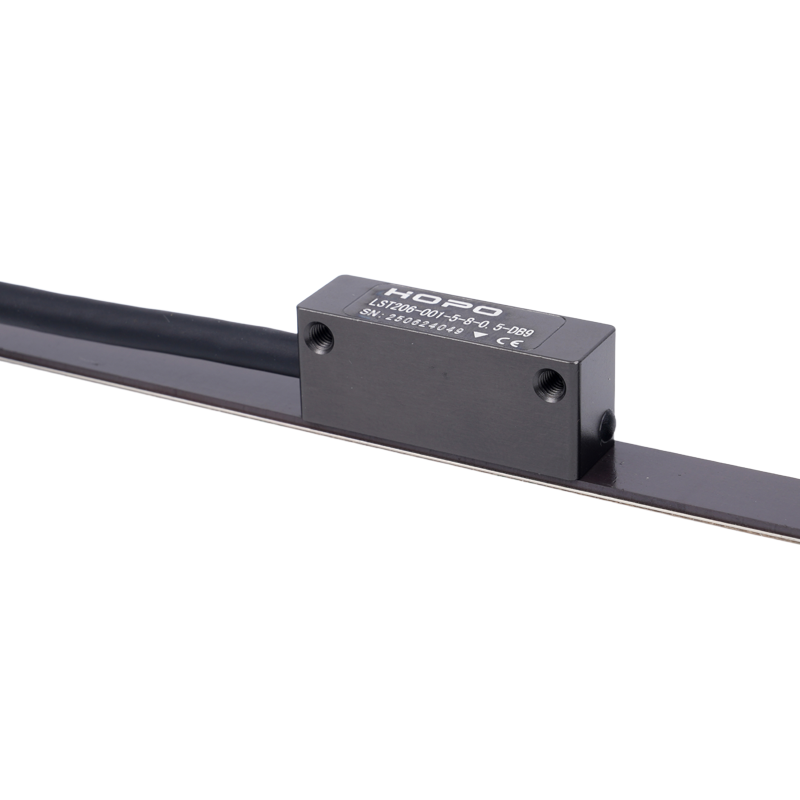

LST206 Incremental Magnetic Linear Encoder
The LST206 is a high-performance incremental magnetic encoder engineered for linear motors and linear modules. Delivering resolutions up to 0.5 μm and stable operation at fast speeds of 11 m/s, it provides precise, reliable feedback for advanced motion control. With standard RS422 ±ABZ outputs, a periodic Z signal every 4 mm, and simple installation aided by an integrated LED alarm indicator, the LST206 ensures both accuracy and convenience in demanding automation applications.
Key Features
High-resolution output up to 0.5 μm at 11 m/s
RS422 interface with ±ABZ and periodic Z signal (4 mm interval)
Easy installation with LED alarm indicator
Wide 1 mm sensing distance for magnetic strips and rings
Ultra-flexible drag chain cable (20+ million cycles)
Non-contact operation, IP67 waterproof housing
Operating range: -30°C to +80°C, resistant to shock, vibration, and pressure
Benefits

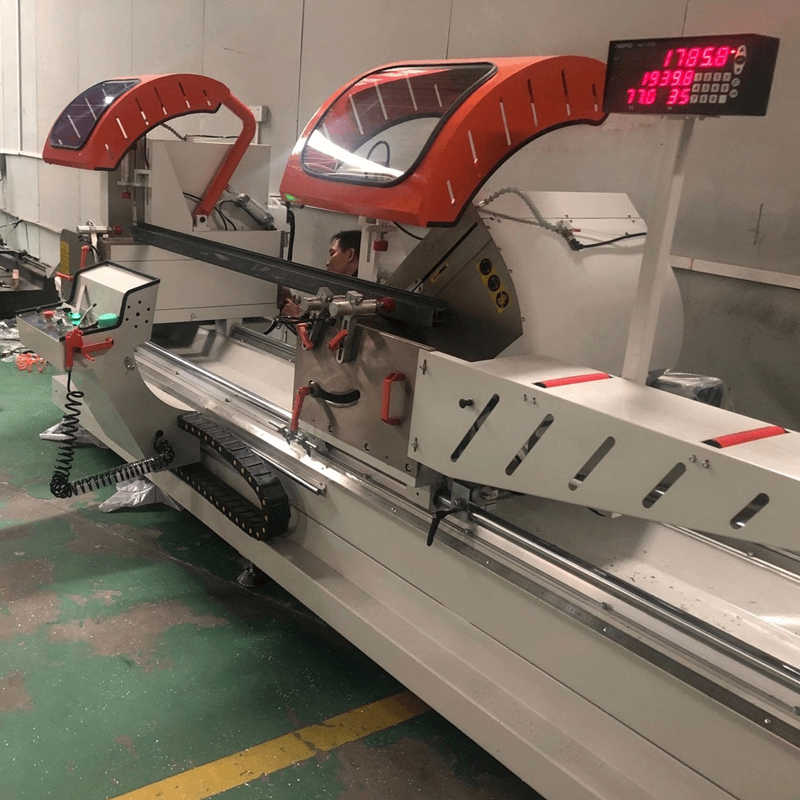

Optimized for linear motion systems with high speed and precision
Long service life with wear-free non-contact sensing and ultra-flexible cabling
Reliable in harsh conditions thanks to IP67 sealing and wide temperature tolerance
Easy setup and maintenance with built-in LED diagnostics and wide air gap tolerance
Stable and accurate feedback for dynamic automation environments
Technical Specifications
|
Working Voltage |
5V |
|
Operating Current |
60mA Max |
|
Resolution |
0.5μm (max) |
|
Output Signal |
±ABZ |
|
Positioning Accuracy |
≤50μm |
|
Repeatability |
±1μm |
|
Max Measuring Length |
50M |
|
Maximum Speed |
11m/s |
|
Max Cable Length |
30M |
|
Cable outlet method |
Direct outlet |
|
Sensor Material |
Aluminum |
|
Sensing Distance |
＜1mm |
|
Overall Dimensions |
33*13*10MM |
|
Mounting Hole Spacing |
26mm |
|

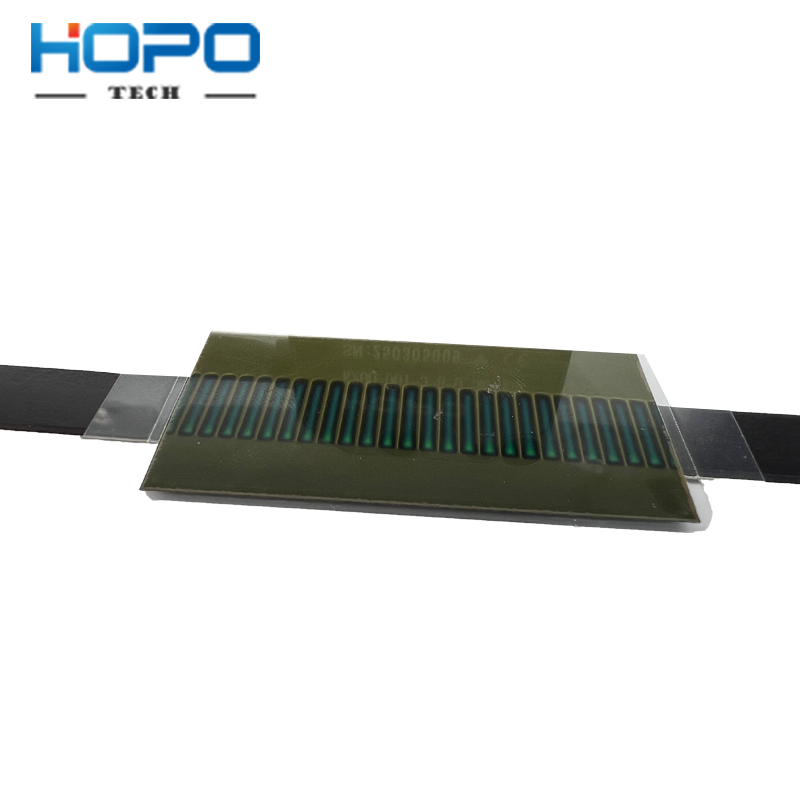

Matched Scale |
MS20 |
|
Cable Length |
Default 0.5 meters |
|
Operating Temperature |
-30 ... 80℃ |
|
Storage Temperature |
-40 ... 105℃ |
|
Protection Rating |
IP67 |
