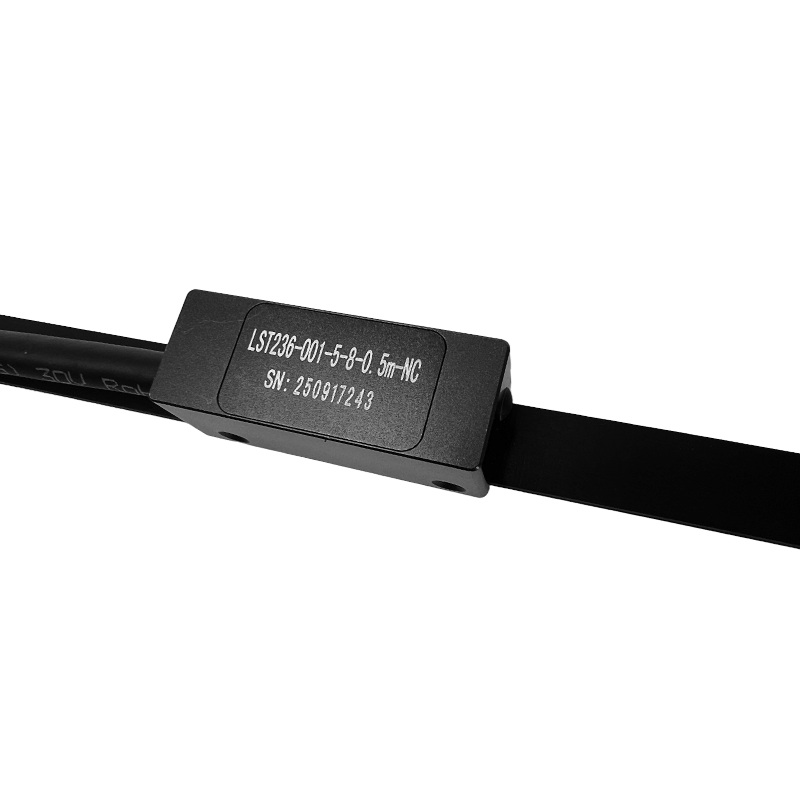

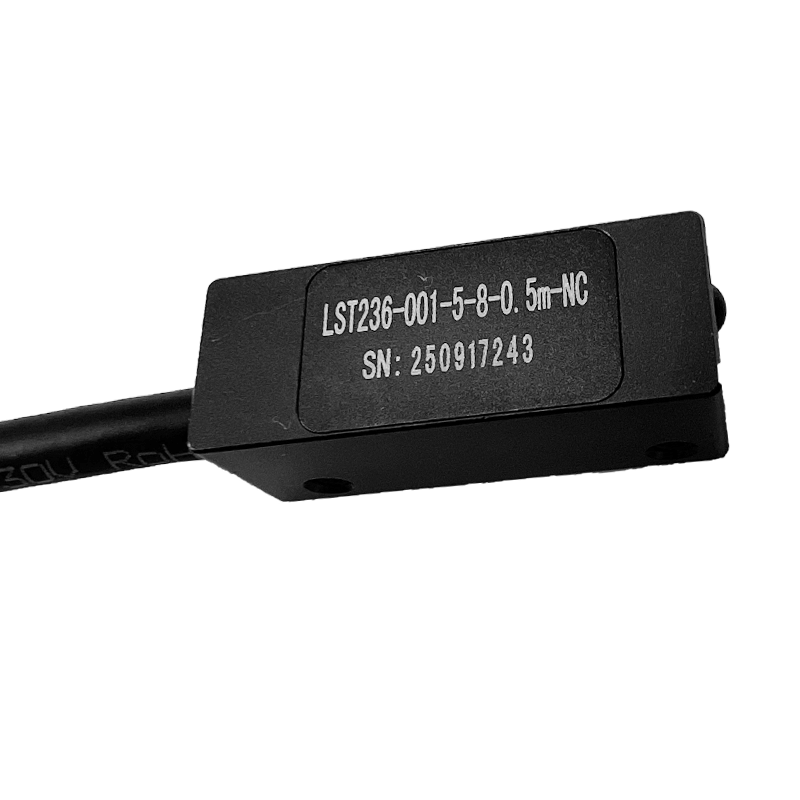

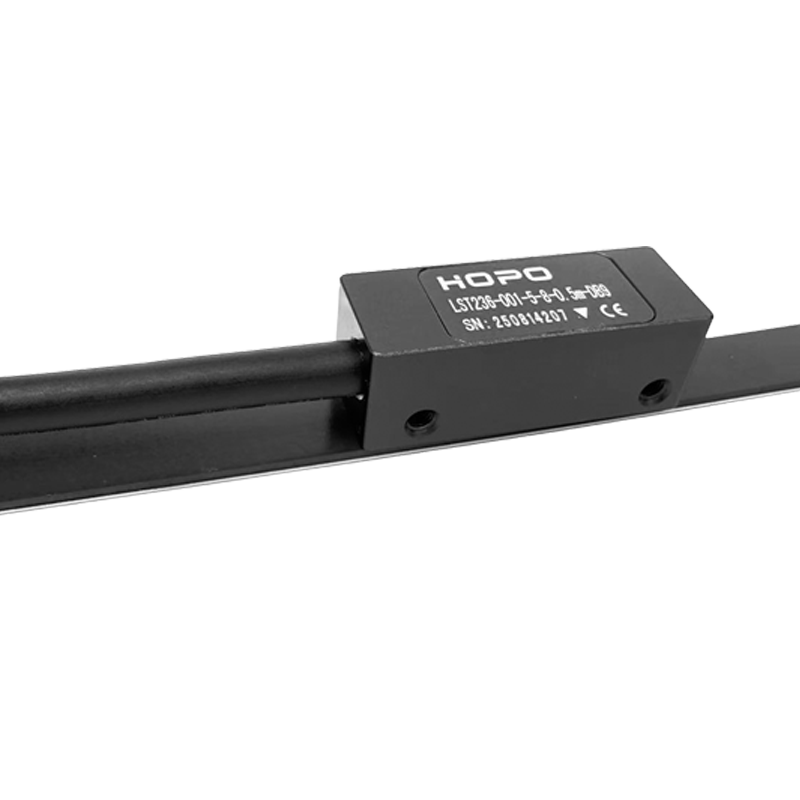

LS(TR)236 Series Magnetic Linear Encoder
The LS(TR)236 is an incremental magnetic encoder usedfor linear motors. It features a unique origin sensor for a single Z-signal over the full stroke, and maintains stable output at 8 m/s with 0.5μm resolution.
It outputs standard RS422 differential signals (±A,±B,±Z). Designed for easy installation and harsh environments, it includes an LED alarm and a large sensing gap. The flexible cable withstands 20+ million bends.
The compact, IP67-rated housing operates from -30°C to +80°C and resists shock, vibration, and pressure.
Technical Specifications
|
Description |
Parameter |
|
Working Voltage |
5V±5% |
|
Operating Current |
60mA Max |
|
Resolution |
0.5 um (max) |
|
Output Signal |
±ABZ |
|
Positioning Accuracy |
≤40um |
|
Repeatability |
±1um |
|
Max Measuring Length |
50M |
|
Maximum Speed |
8m/s |
|
Max Cable Length |
30M |
|
Cable outlet method |
Direct outlet |
|
Sensor Material |
Aluminum |
|
Sensing Distance |
＜1mm |
|
Overall Dimensions |
36*13.5*12.5 mm |
|
Mounting Hole Spacing |
26 mm |
|
Matched Scale |
MS20 |
|
Cable Length |
Default 0.5 meters |
|
Operating Temperature |
-30 ... 80℃ |
|
Storage Temperature |
-40 ... 105℃ |
|
Protection Rating |
IP67 |
