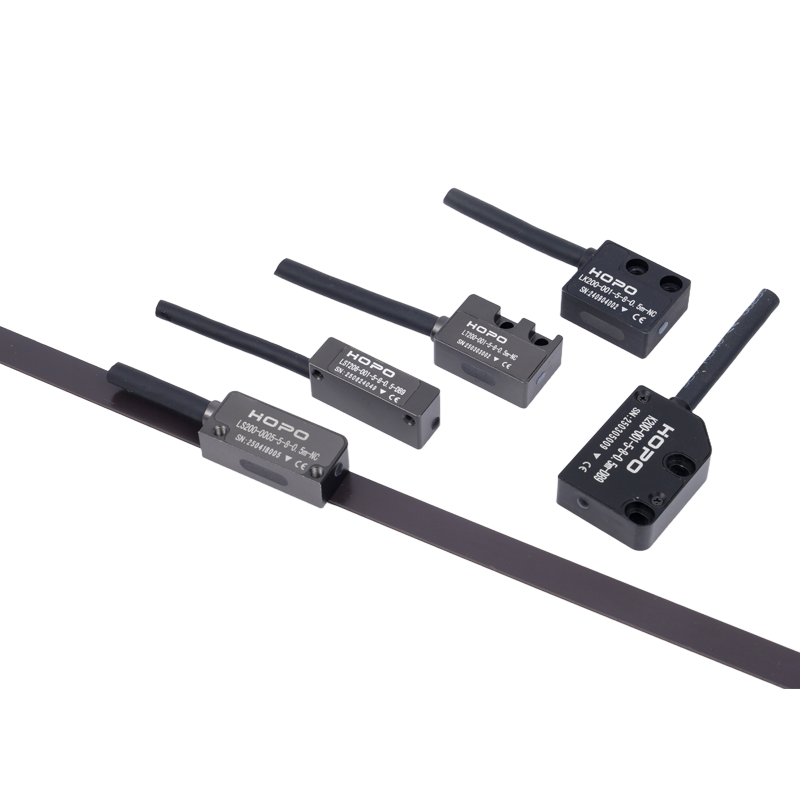

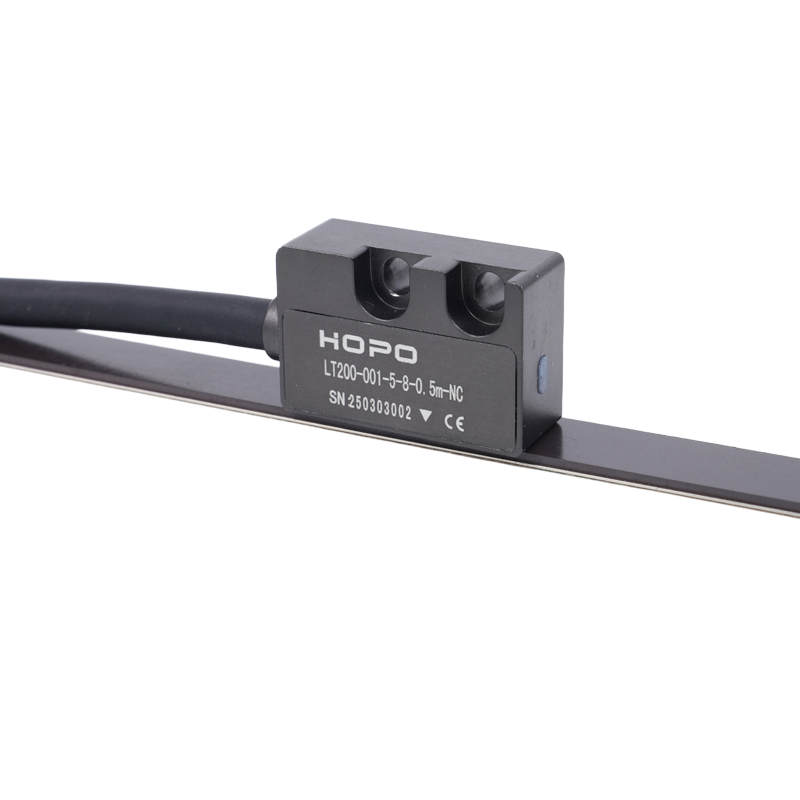

LT200 Incremental Magnetic Linear Encoder
The LT200 is a precision magnetic encoder exclusively designed for linear motors, delivering reliable position feedback for high-speed automation and motion control systems. With fine 0.5 μm resolution and stable operation at speeds up to 8 m/s, it combines performance, durability, and easy installation for demanding industrial environments.
Key Features
High-speed performance: 0.5 μm resolution, stable up to 8 m/s
RS422 interface with ±ABZ outputs (quadrature AB + Z-index every 2 mm)

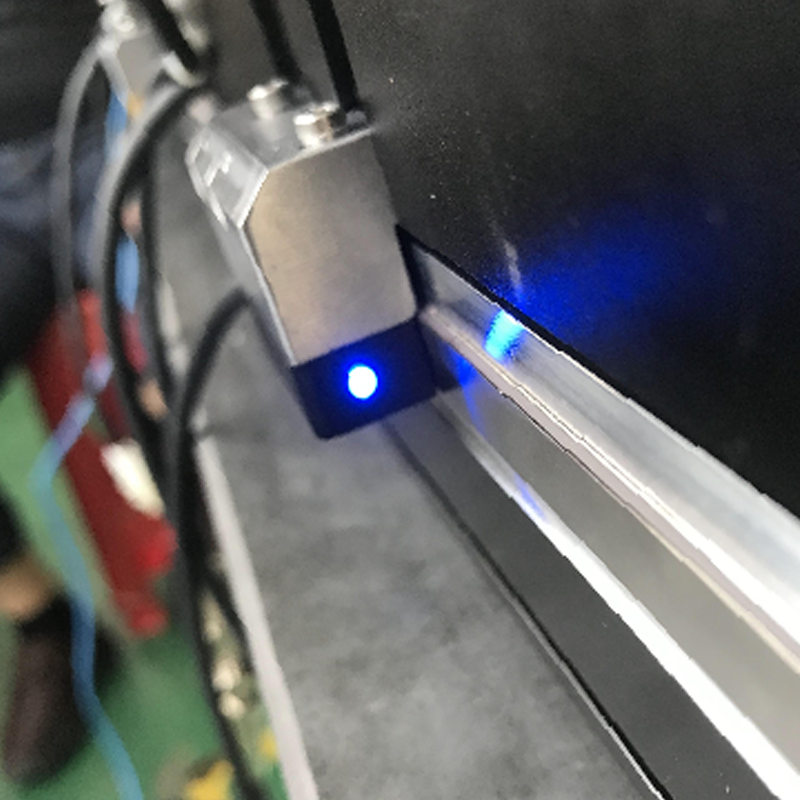

Integrated LED alarm indicator and wide air gap tolerance
Ultra-flexible drag chain cable (>20 million cycles)
Non-contact design, operating from -30°C to +80°C
Robust IP67 housing, resistant to shock, vibration, and pressure
Benefits
Optimized for linear motors with high accuracy and speed
Reliable and durable in harsh operating conditions
Low maintenance due to wear-free non-contact design
Easy setup and alignment with built-in LED indicator
Long service life supported by ultra-flexible cabling and rugged housing
Technical Specifications
|
Working Voltage |
5V |
|
Operating Current |
60mA Max |
|
Resolution |
0.5μm (max) |
|
Output Signal |
±ABZ |
|
Positioning Accuracy |
≤40μm |
|
Repeatability |
±1μm |
|
Max Measuring Length |
50M |
|
Maximum Speed |
8m/s |
|
Max Cable Length |
30M |
|
Cable outlet method |
Direct outlet |
|
Sensor Material |
Aluminum |
|
Sensing Distance |
＜1mm |
|
Overall Dimensions |
30*18*10MM |
|
Mounting Hole Spacing |
10mm |
|

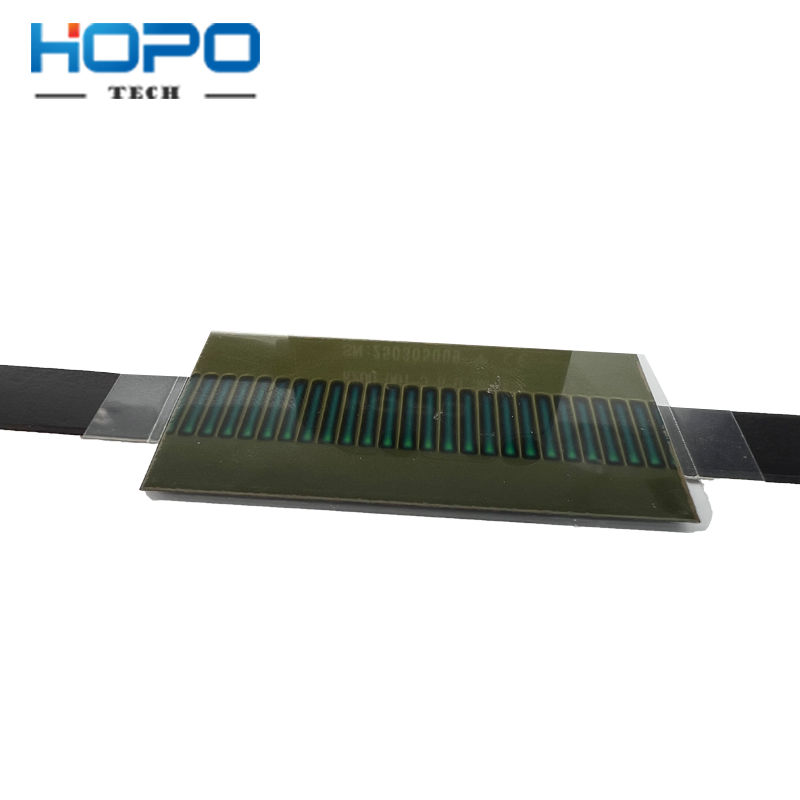

Matched Scale |
MS20 |
|
Cable Length |
Default 0.5 meters |
|
Operating Temperature |
-30 ... 80℃ |
|
Storage Temperature |
-40 ... 105℃ |
|
Protection Rating |
IP67 |
|
Working Voltage |
5V |
|
Operating Current |
60mA Max |
