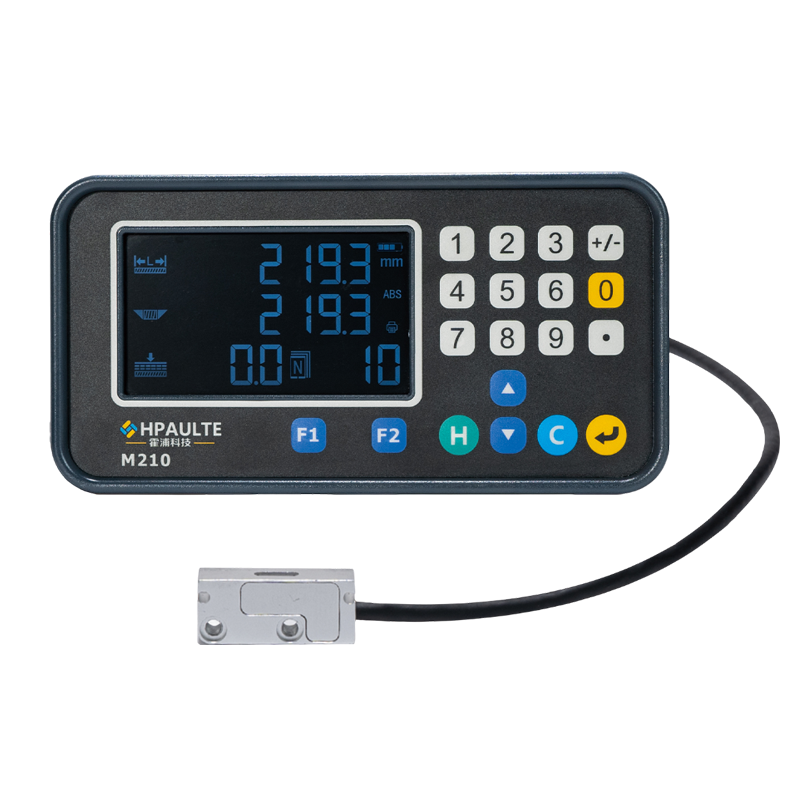

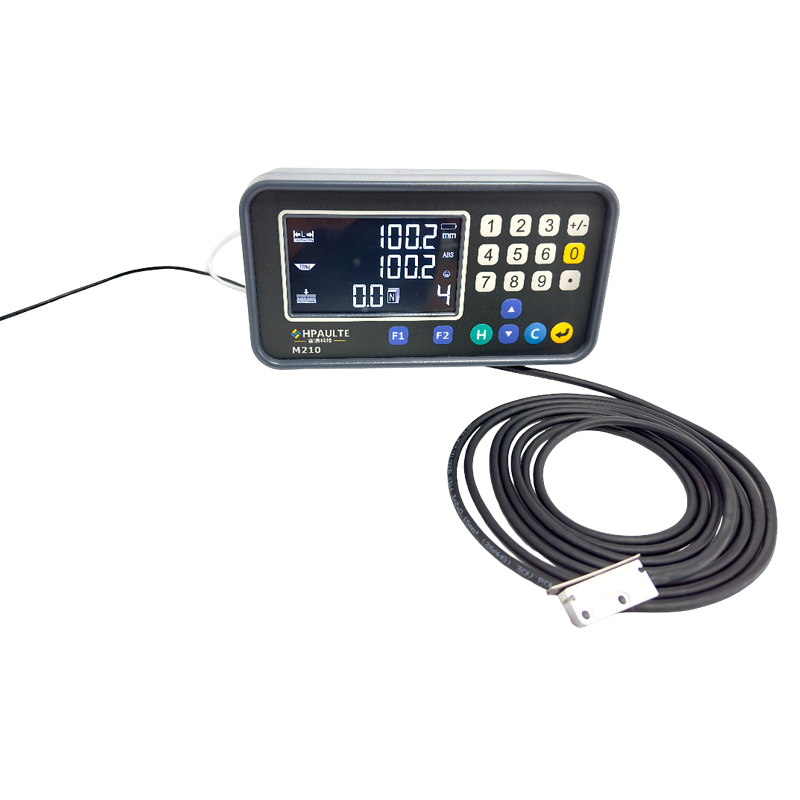

The M210 Magnetic Digital Readout is designed for precision, convenience, and long-term reliability in demanding measurement applications. Featuring four independent display windows for 90°, 45°, material height, and counter, it allows users to view multiple parameters at a glance for faster decision-making.
Installation is simple with aviation plug connectors, while the nine-grid full keyboard ensures quick and intuitive operation. Powered by an auto-rechargeable lithium battery, the M210 offers maintenance-free, long-lasting performance without the need for battery replacement. With mm/inch scale factor options, multiple compensation levels, and dedicated 45° compensation, it delivers exceptional flexibility and accuracy across a wide range of tasks.
The M210 combines advanced functionality with user-friendly design, making it the ideal digital readout for modern machining and precision measurement.
| Positioning Accuracy | ±(0.03+0.01*L)mm: L units:meters |
|---|---|
| Repeatability | Max ±0.01 mm |
| Resolution | 0.01, 0.05, 0.1, 1 |
| Display range | -1999999 ~ 1999999 |
| Consumption Current | Max. 650 uA |
| Power | Outer: AC: 110-220V, Built-in 3.7V battery |
| Operating Temperature | 0ºC ~ 60ºC |
| Storage Temperature | -10ºC ~ 70ºC |
| Output contact | Max. 250VAC/5A; MAX. 30VDC/5A |
| Overall Dimensions | 120*230*96.2 mm |
| Opening dimensions | No |
| Readhead cable length | 3 meters default |
| Sensing Distance | Max. 2.5 mm, Optimal 1.5mm |
| Travel Speed | Max 1.6m/s |
| Matched Scale | MS50 |
| Protection Rating | Display Unit: IP40, Read head: IP65 |
| Weight | Max 1300 grams, Min. 110 grams |
