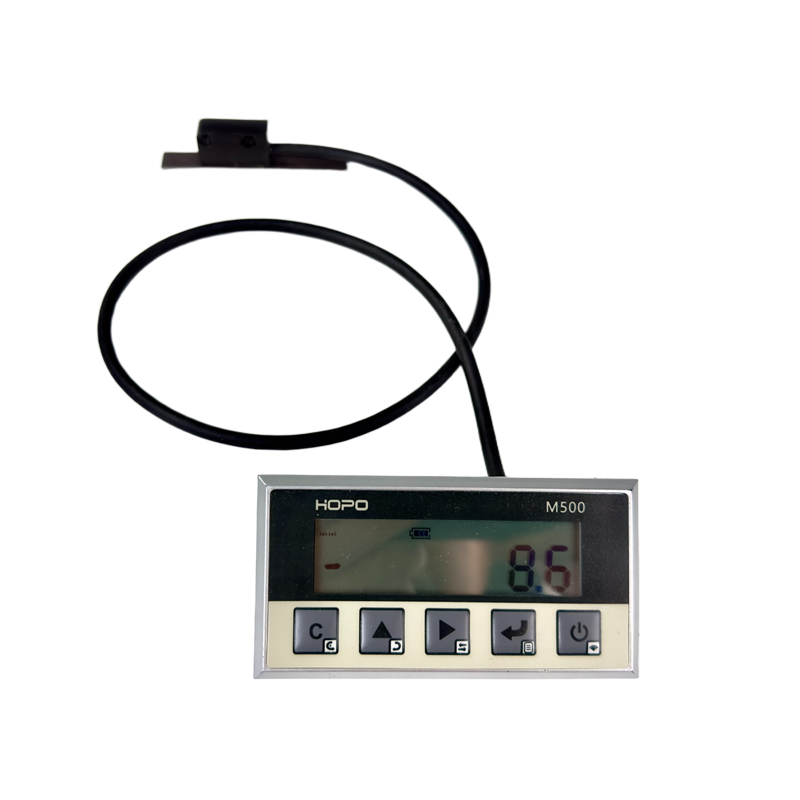

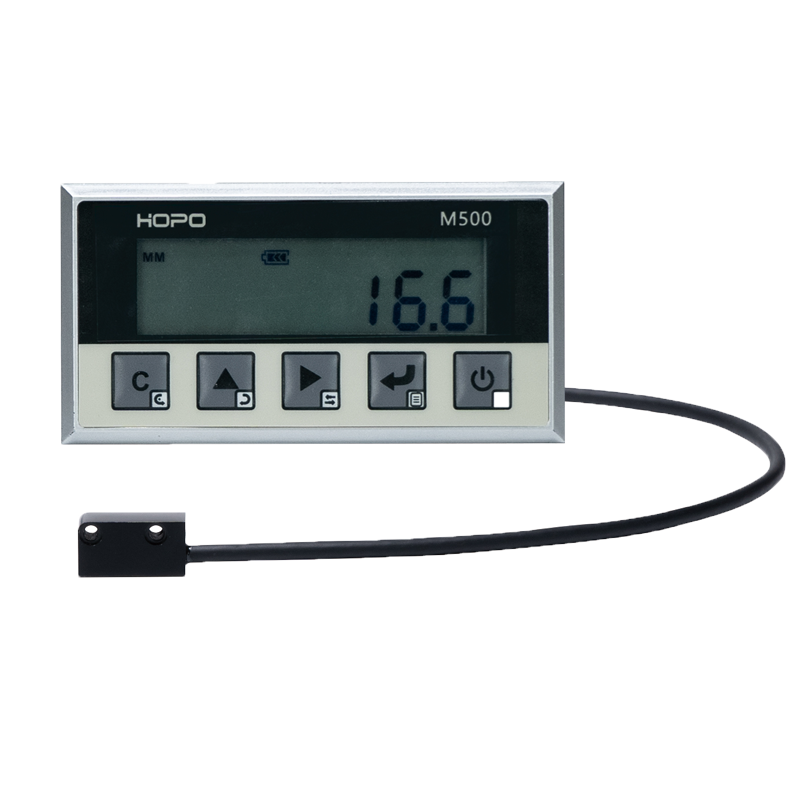

The M500 Digital Readout is designed to bring precision, reliability, and ease of use to your measurement applications. With a maximum display accuracy of 10µm (0.001 inch) and repeatability of ±0.01mm, it ensures consistently accurate results every time.
Its 7-digit low-power LCD display with intuitive icons provides a clear and user-friendly interface, while support for millimeter, inch, and angle modes makes it versatile across different measurement needs. The M500 works seamlessly with magnetic scales at distances up to 2mm, offering flexible installation in a wide range of setups.
Powered by batteries, the M500 eliminates the need for external power and is always ready to perform. Built-in compensation and scale factor adjustments further enhance measurement efficiency, while an optional customizable analog output ensures easy integration into broader control systems.

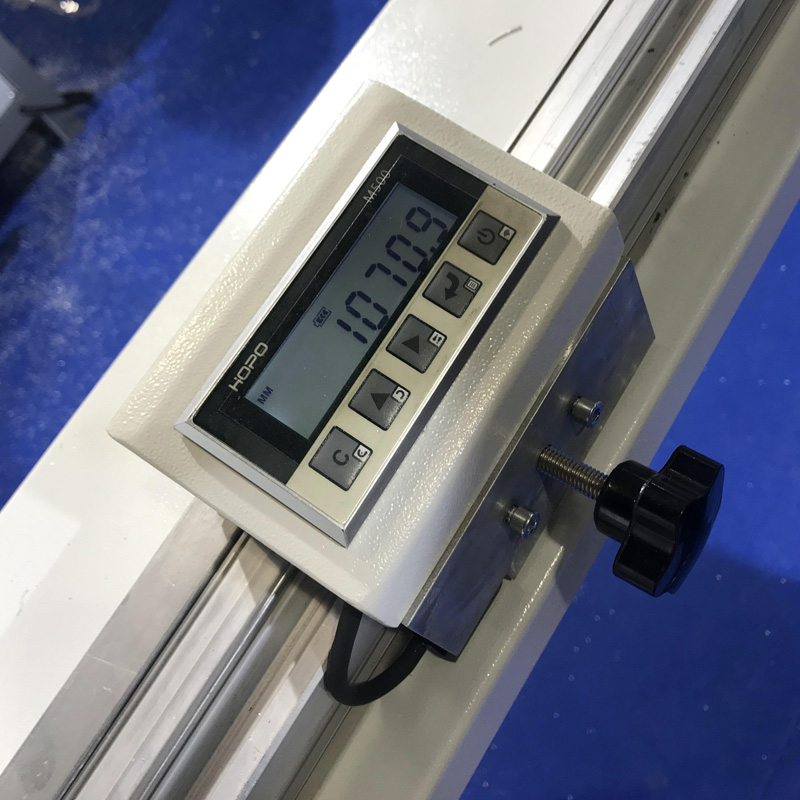

The M500 is the perfect balance of accuracy, convenience, and flexibility—ideal for modern industrial and automation applications.
| Outer frame structure | Embedded kit |
|---|---|
| Reading distance of sensor | Max.2.5mm，Optimal 1.5mm |
| Overall dimensions | 100X52mm |
| Opening Dimension | 92X43mm |
| Matched magnetic scale | MS50 |
| Sensor length | 0.15…6m |
| Working voltage | DC 2 … 3.3 V |
| Current consumption | ≦600µA |
| Display range | -1999999~1999999 |
| Resolution | 0.01, 0.05, 0.1, 1mm |
| System accuracy | 土(0.03+0.01* L) mm; L unit: m |
| Repeatability | Max. 士0.01mm |
| Moving speed | 2m/s , 3m/s |
| Ambient temperature | -10°c~+70°c |
| Storage temperature | 0°c~+60°c |
| Protection level | Dispaly: IP40; Encoder: IP67 |
