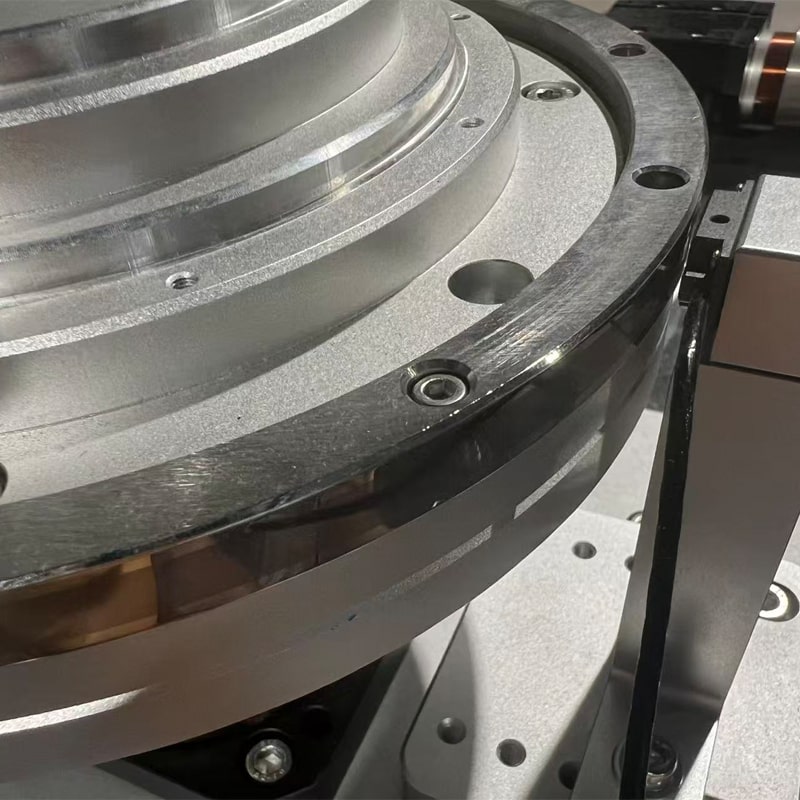

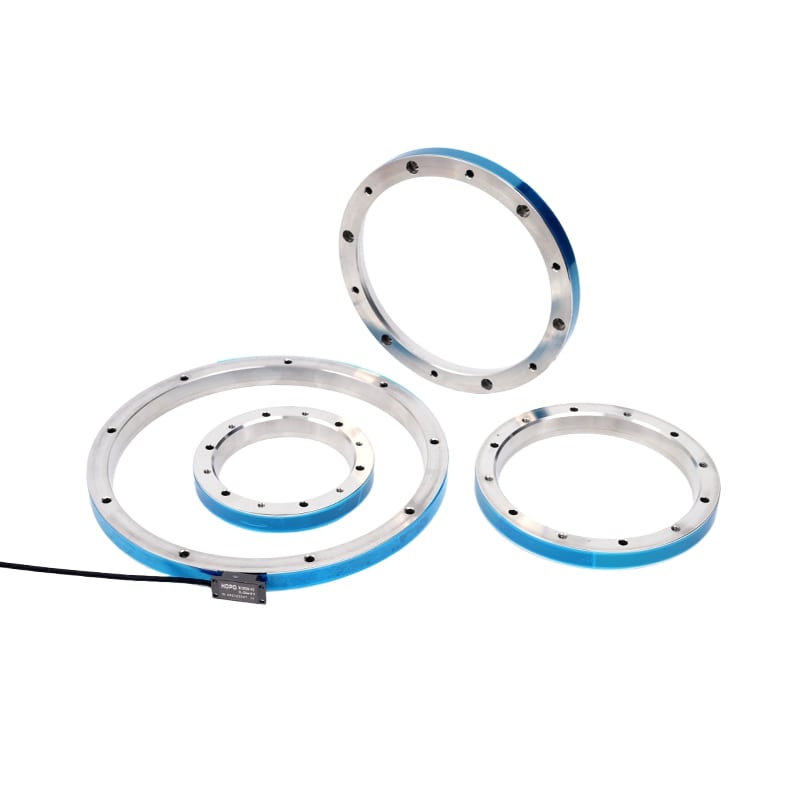

The Micron-p2 series is a high-precision optical angle encoder designed for applications demanding ultra-compact size, rugged reliability, and exceptional accuracy. It features a micro-sized read head paired with a stainless steel encoder disk, making it ideal for harsh industrial environments where durability and precision are critical.
The Micron-p2 optical ring encoder combines high accuracy, durability, and compactness, making it an excellent choice for demanding industrial and automation applications.
| Description | Parameter | Remark |
|---|---|---|
| Working Voltage | 5V | ±5% |
| Operating Current | Normal Operating Current: 40mA | 25℃ Room Temperature |
| Grating Pitch | 20um | |
| Sensor Material | Aluminum | |
| Cable Length | Default 0.5 meters | Customizable |
| Weight | 80g | 0.5 meters Read Head |
| Overall Dimensions | 21*10*5MM | |
| Operating Temperature | -5 ... 70℃ | Non-condensing |
| Storage Temperature | -20 ... 70℃ | |
| Protection Rating | IP40 |
| Cable Specification | |
|---|---|
| Cable Type | Torsion-resistant, drag chain compatible, shielded |
| Number of Wires | 8 |
| Outer Diameter | 2.2mm ±0.15 mm |
| Jacket Material | Fluoropolymer resin |
| Wire specs | 0.08 mm2, 28 AWG, 0.38 Ω/m |
| Shielding Effectiveness | 90% |
| Durability | 40 million cycles at 35 mm bending radius |
| Bending Radius | Dynamic: 25 mm / Static: 10 mm |
