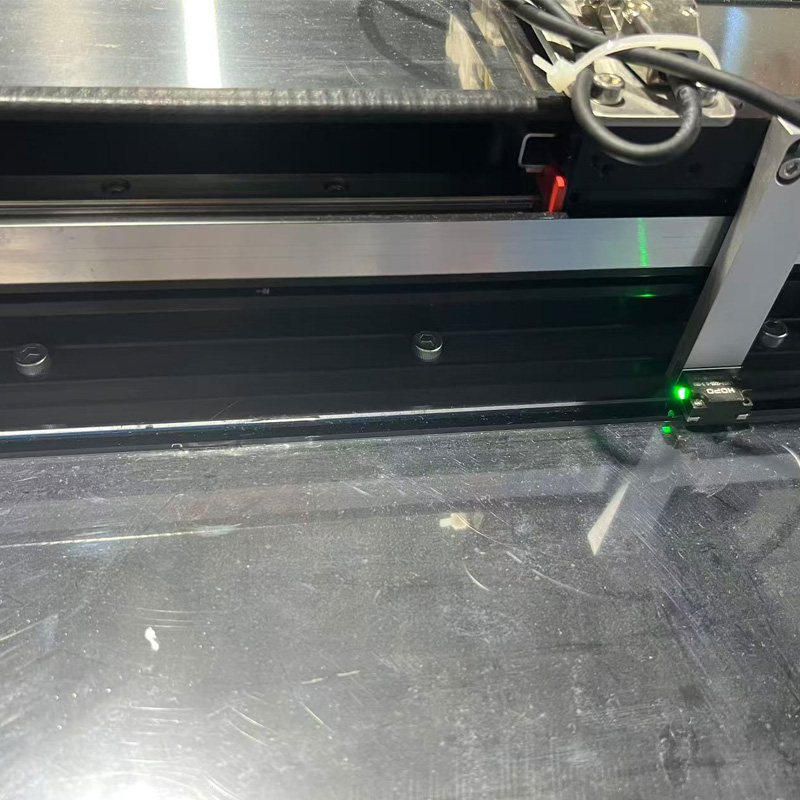

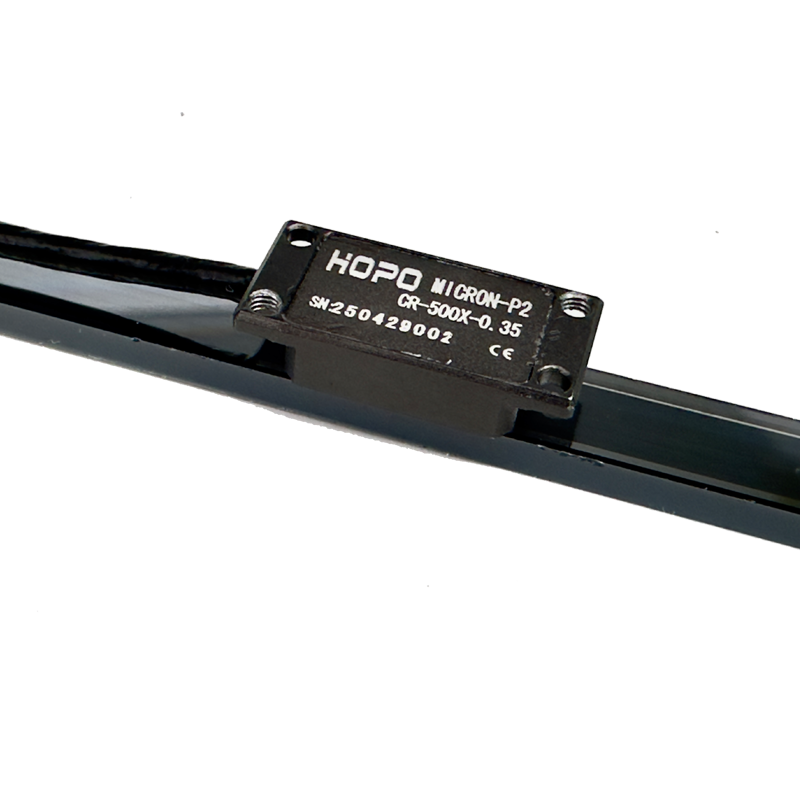

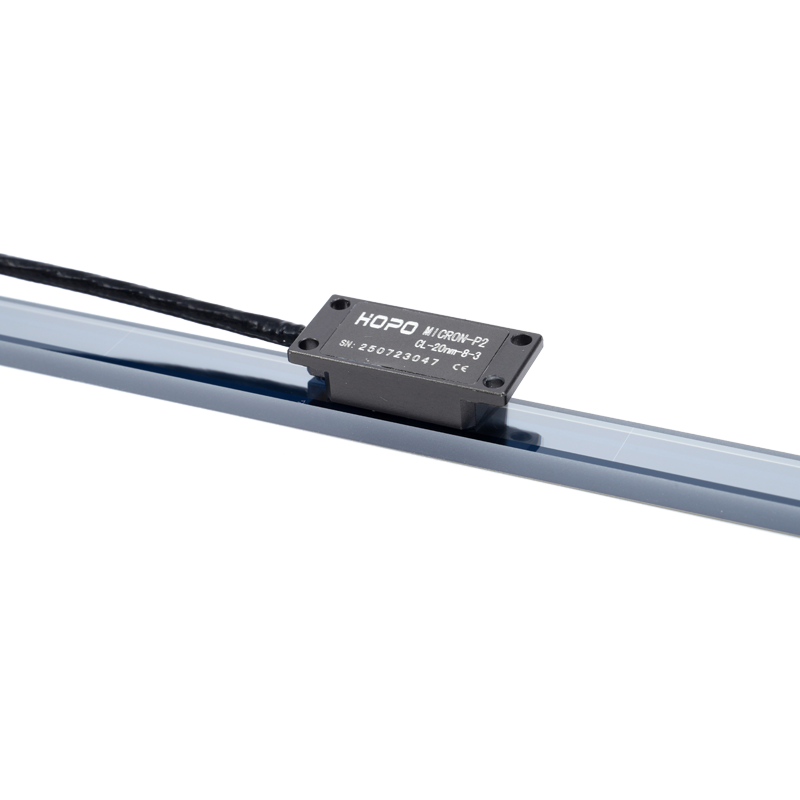

The MICRON-P2 series optical linear encoder is an ultra-compact optical linear encoder designed for applications where space is at a premium, such as laser scanners, CMM articulated arms, semiconductor equipment, microscopy stages, and miniaturized linear motors. Its single-track, non-polarized design ensures simple installation with high fault tolerance, while the compact readhead supports use even in ultra-high vacuum (UHV) environments. Offering incremental digital output with customizable resolution down to 10 nm, and built with a low thermal expansion glass grating for superior stability, the MICRON-P2 combines precision, reliability, and flexibility in a miniature form factor.
| Description | Parameter | Remark |
|---|---|---|
| Working Voltage | 5V | ±5% |
| Operating Current | Normal Operating Current: 40mA | 25℃ Room Temperature |
| Grating Pitch | 20um | |
| Sensor Material | Aluminum | |
| Cable Length | Default 0.5 meters | Customizable |
| Weight | 80g | 0.5 meters Read Head |
| Overall Dimensions | 21*10*5MM | |
| Operating Temperature | -5 ... 70℃ | Non-condensing |
| Storage Temperature | -20 ... 70℃ | |
| Protection Rating | IP40 |
| Cable Specification | |
|---|---|
| Cable Type | Torsion-resistant, drag chain compatible, shielded |
| Number of Wires | 8 |
| Outer Diameter | 2.2mm ±0.15 mm |
| Jacket Material | Fluoropolymer resin |
| Wire specs | 0.08 mm2, 28 AWG, 0.38 Ω/m |
| Shielding Effectiveness | 90% |
| Durability | 40 million cycles at 35 mm bending radius |
| Bending Radius | Dynamic: 25 mm / Static: 10 mm |
