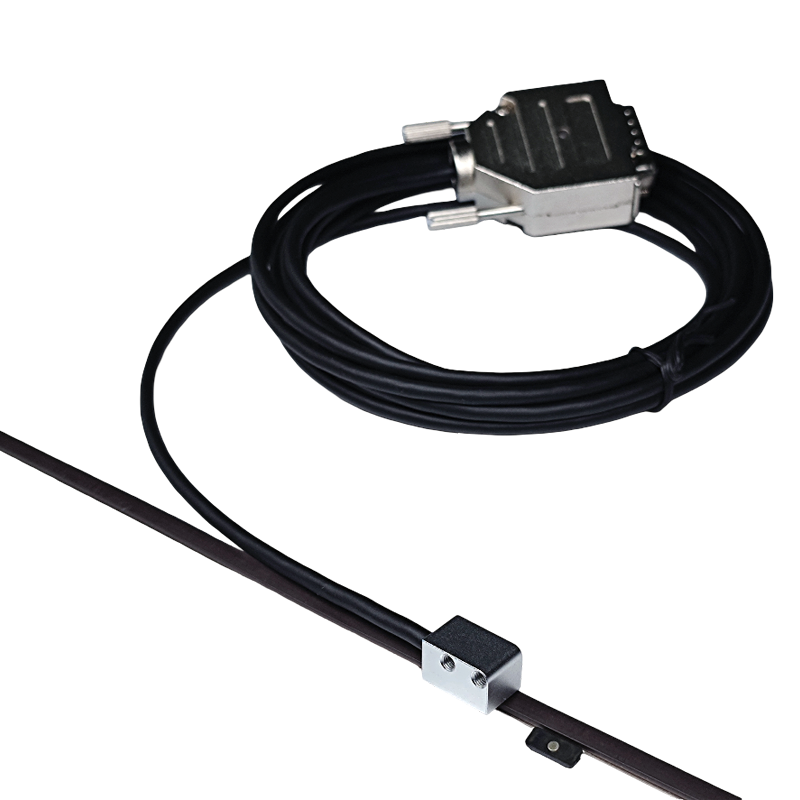

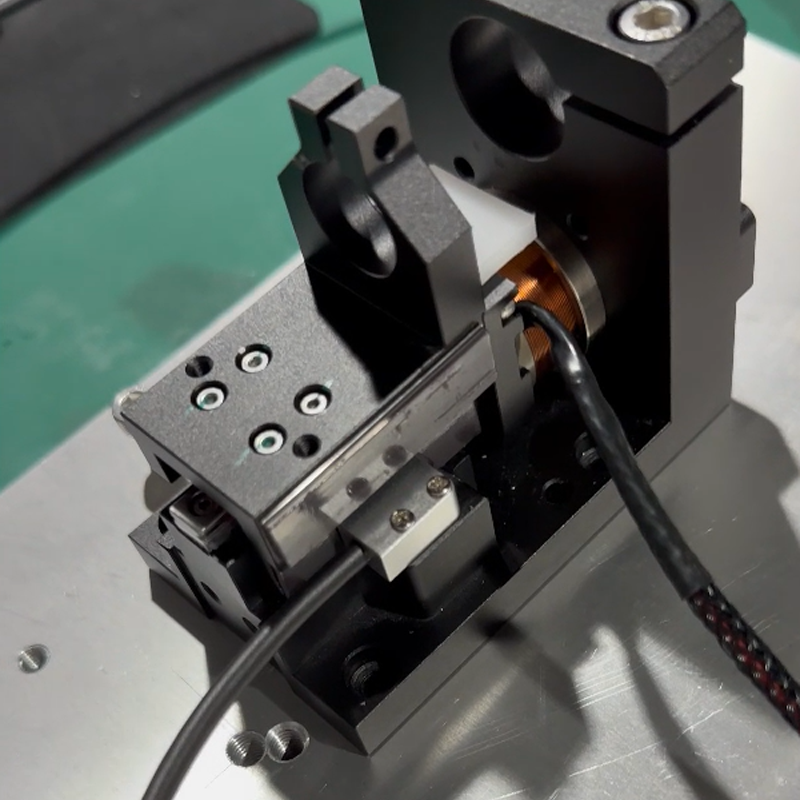

The MINI series is an ultra-compact incremental linear encoder, specifically designed for using in linear motor, Direct Drive (DD) motors.
Performance
Ø High Speed & Resolution: Guarantees stable operation at speeds up to 8 m/s with a fine resolution of 0.5 µm.
Ø Output Signal: Provides industrial-standard RS422 (±ABZ) incremental digital signals, including quadrature AB and a Z signal with a 2 mm period.
Design & Durability
Ø Robust Construction: Compact, sealed IP67 housing protects against dust and water ingress.
Ø Environmental Resilience: Operates reliably in harsh environments with a temperature range of -30 ℃ to +80 ℃ and offers excellent resistance to shock, vibration, and pressure.

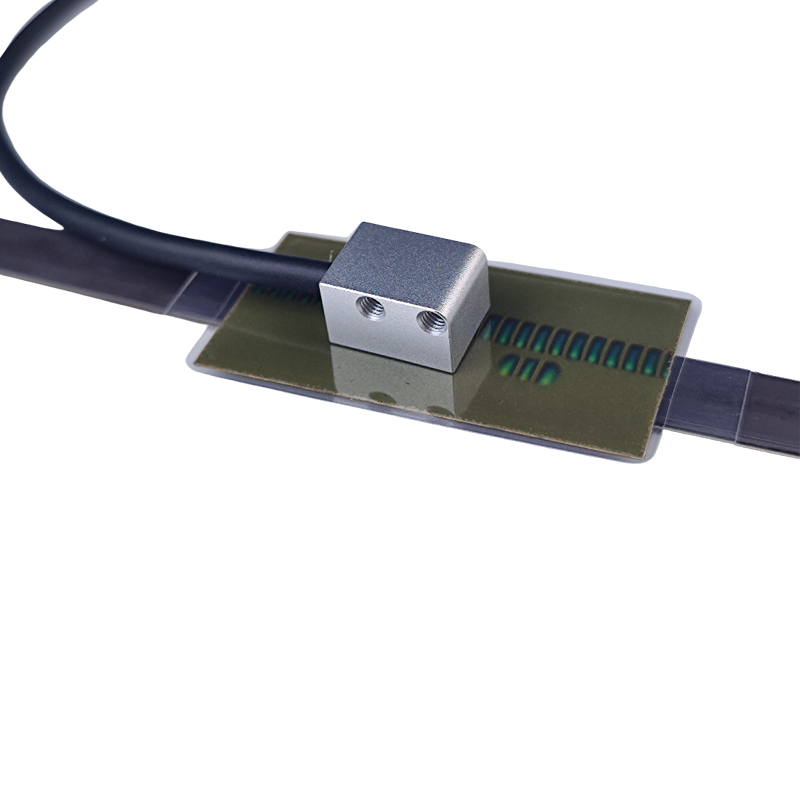

Ø Non-Contact Sensing: Ensues long-term reliability and allows a generous sensing gap of up to 1 mm from the magnetic strip.
Technical Specifications
|
Description |
Parameter |
Remark |
|
Working Voltage |
5V |
±5% |
|
Operating Current |
60mA Max |
25℃ Room Temperature |
|
Resolution |
0.5 um (max) |
Customizable |
|
Output Signal |
±ABZ |
Industrial RS422 Standard |
|
Positioning Accuracy |
≤40um |
Laser interferometer calibrated(Sensing gap: 0.5mm) |
|
Repeatability |
±1um |
Laser interferometer calibrated(Sensing gap: 0.5mm) |
|
Max Measuring Length |
50M |
Depending on scale |
|
Maximum Speed |
8m/s |
|
|
Max Cable Length |
N<10M, M<30M |
Optimal max length |
|
Cable outlet method |
Dual-row DB15 male connector with integrated interface unit box, Direct cable outlet via interface unit box |
Optional direct cable outlet (DB9/DB15) via（DB9/DB15） |
|
Sensor Material |
Aluminum |
CNC Precision Engraving |
|
Sensing Distance |
＜1 mm |
Optimal accuracy achieved at 0.2mm gap |
|
Overall Dimensions |

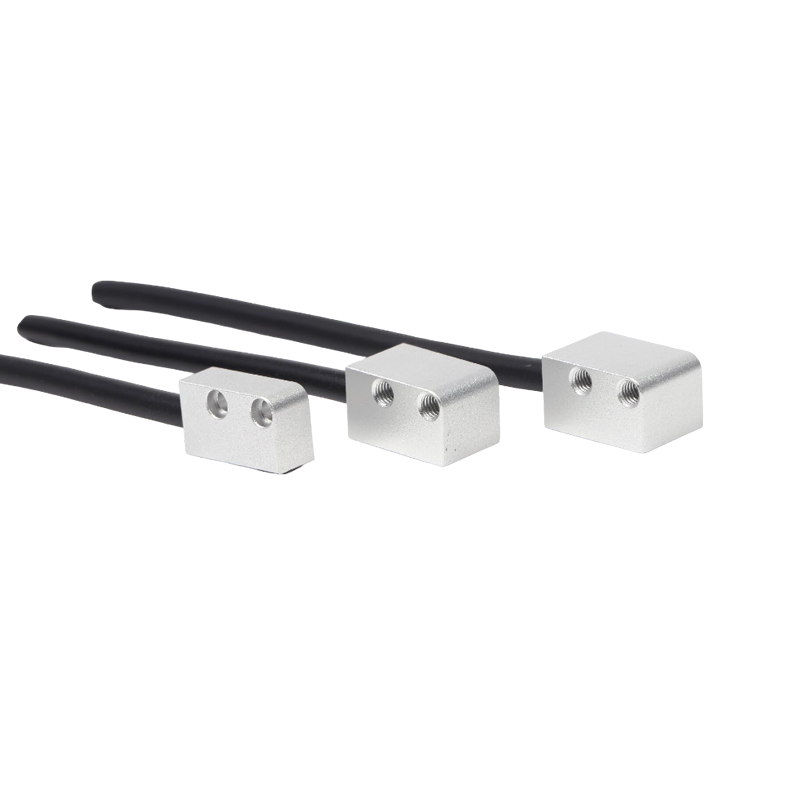

MINI200 Readhead:15*10*9mm; MINIR:15*11*9mm;MINIX:15*6*9mm; interface unit box:35*30*10mm; DB15:50*40*16mm |
|
|
Mounting Hole Spacing |
7mm |
|
|
Matched Scale |
MS20-5, MS20-10 |
|
|
Cable Length |
DB15:Default 0.5 meters; interface unit box: default 0.5 m @ each end |
Customizable |
|
Operating Temperature |
-30 ... 80℃ |
|
|
Storage Temperature |
-50 ... 105℃ |
|
|
Protection Rating |
IP67 |
|
