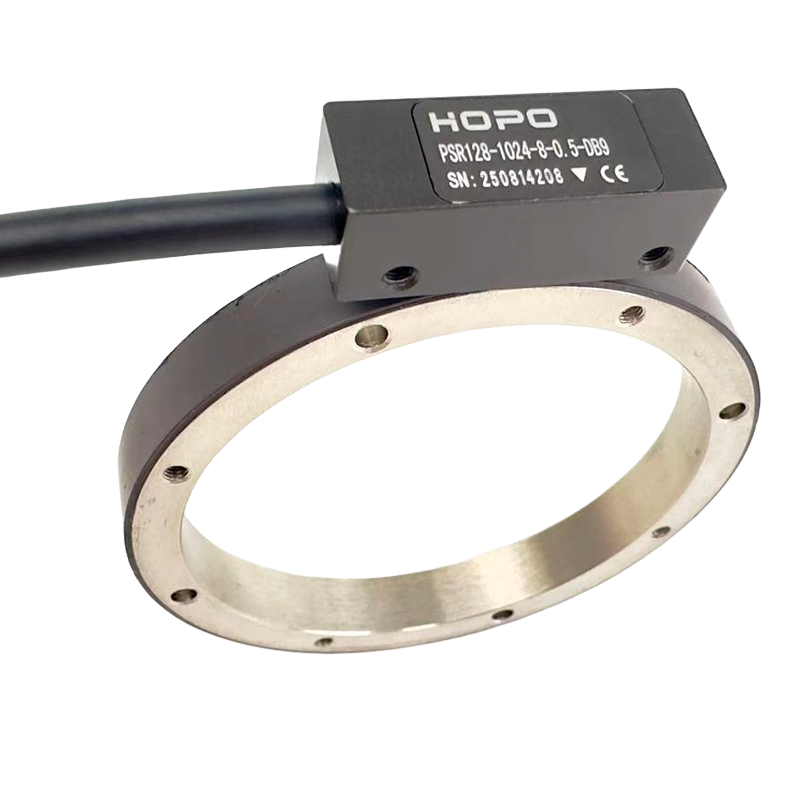

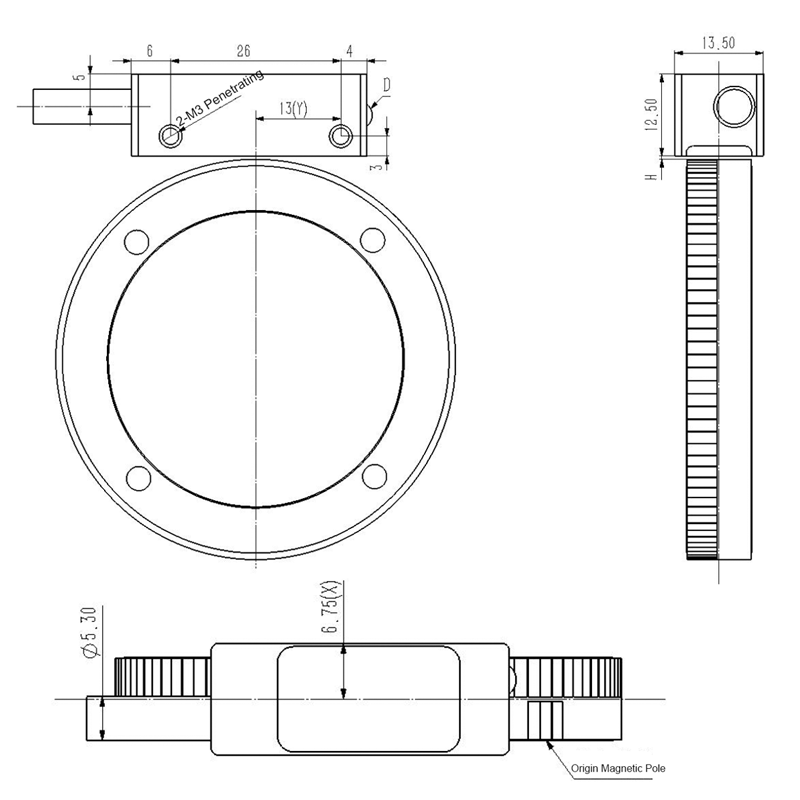

PS(TR) Series Magnetic Rotary Ring Encoder Readhead

The PS(TR) series is an incremental magnetic ring encoder designed for high-speed electric spindles and direct-drive rotary motors. It includes a unique origin sensing module that outputs a Z signal per revolution for precise motion control.

Key Features

• Built-in unique origin sensing module outputs a single Z signal per revolution.

• High-Speed Output: AB signal, max 8 MHz, reliable origin signal at up to 40 m/s.

• Signal Type: RS422 standard with ±ABZ incremental digital and orthogonal AB signals.

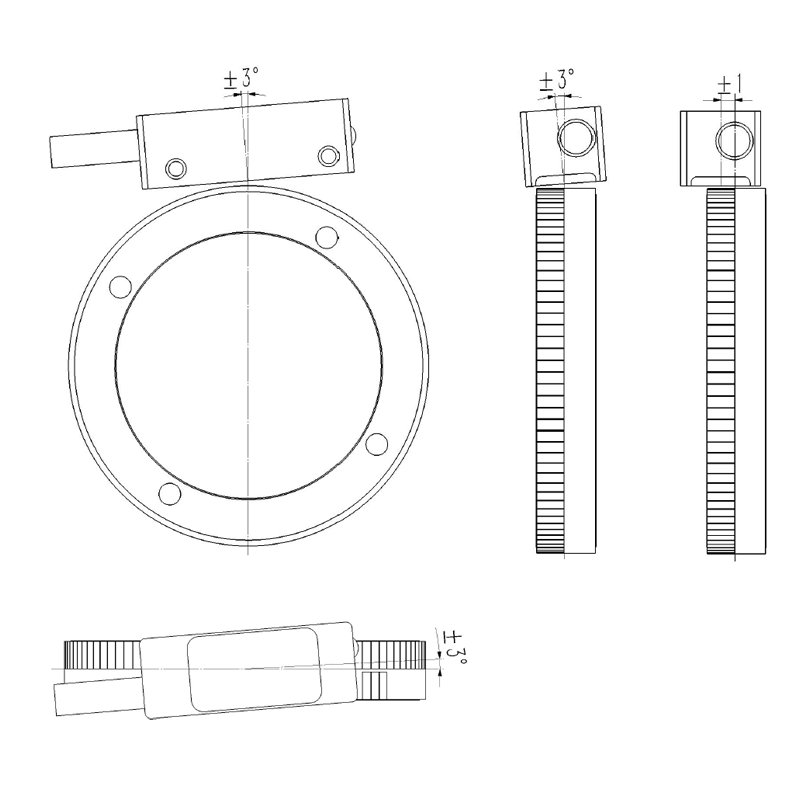

• Easy Installation: Large sensing gap and LED alarm indicator for easy setup.

• Durability: Drag chain cable rated for 20 million flex cycles.

• Non-Contact Operation: Operates in extreme environments (-30°C to +80°C).

• Harsh Environment Resistance: Withstands impact, vibration, and pressure.

• Compact & Sealed: IP67 rated for dust and water protection.

·  Applications

• High-Speed Electric Spindles: Position feedback for machining and milling.

• Direct-Drive Rotary Motors: Precise feedback for high-torque applications like robotics.

• Industrial Automation: Feedback in automated production and robotic systems.

• Harsh Environments: Ideal for heavy machinery, CNC, and marine applications.

Technical Specifications
